F96+

PHAETON


Features

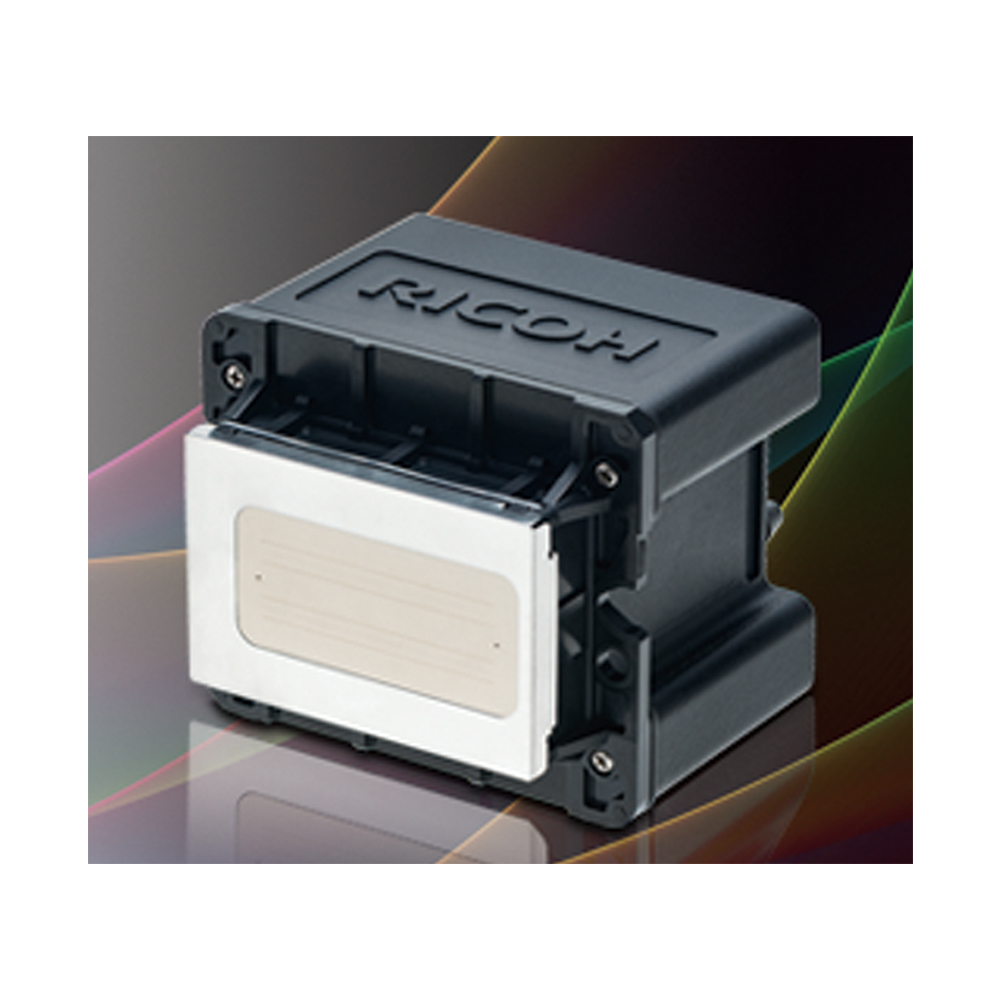

Ricoh's 1st thin film piezo printhead, enabling high definition printing in a wide range of applications by compact package, ink compatibility and jetting stability

BRAND

PHAETON

MODEL

F 96+

RIP SOFTWARE

Maintop , PHOTOPRINT

PRINT HEAD

RICOH TH5241

Printing Speed

  • 4PASS 31sqm/H
  • 6PASS 22sqm/H
  • 8PASS 17sqm/H

INK TYPE

CMYK Lc. Lm, White & Varnish 8 colors UV Inks and Separate control switch

SPECIFICATION

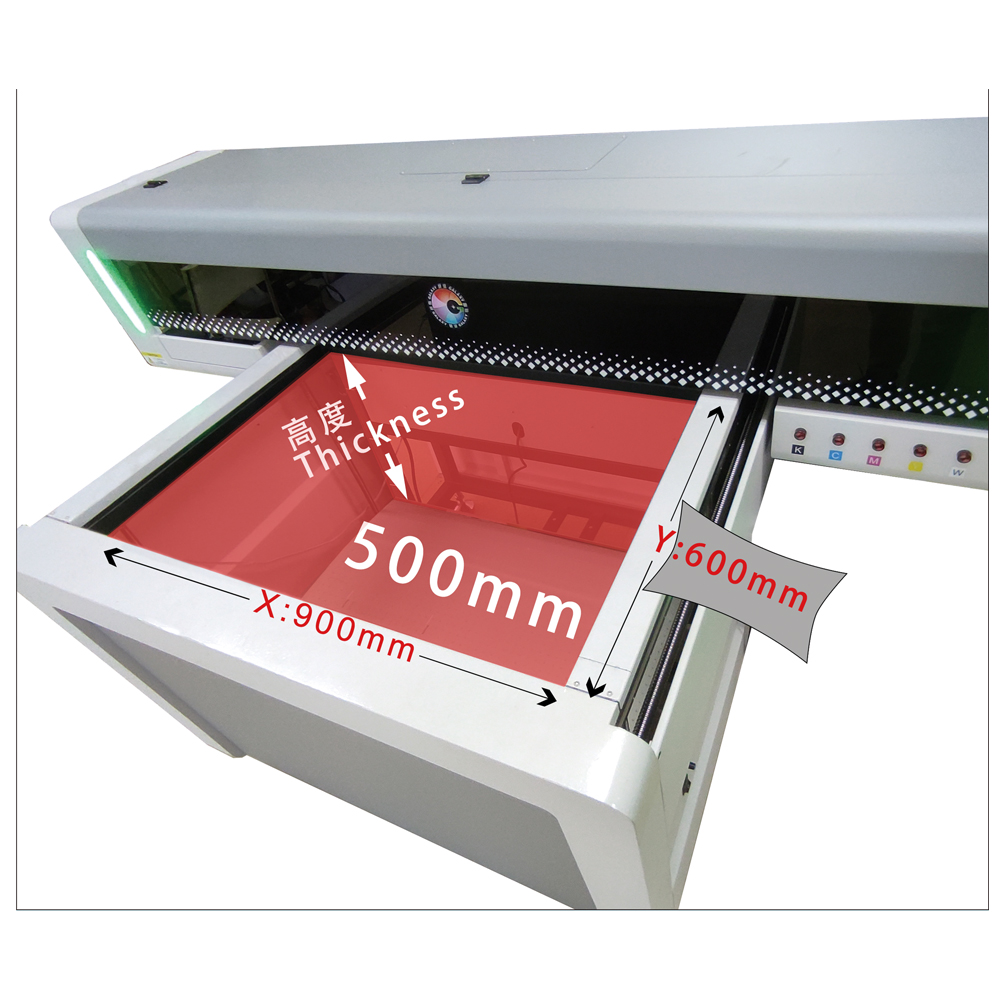

PRINT HEIGHT

500 mm

PRINTER POWER

3000 W

MAX PRINT WIDTH

900 x 600 mm

MACHINE SIZE

2,150x1,100x1150/230 KG

PACKING SIZE

2,300x1,250x1450/300 KG

Media Type

Wood panel, Aluminum panel, door plank, paperboard, PVC expansion sheet, ceiling panel, glass, ceramics, acrylic, PVC, etc.
