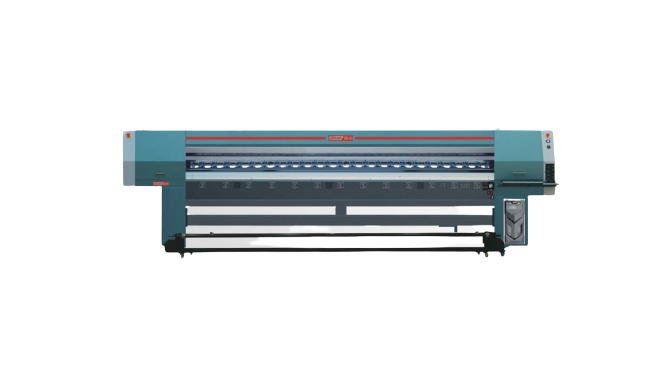

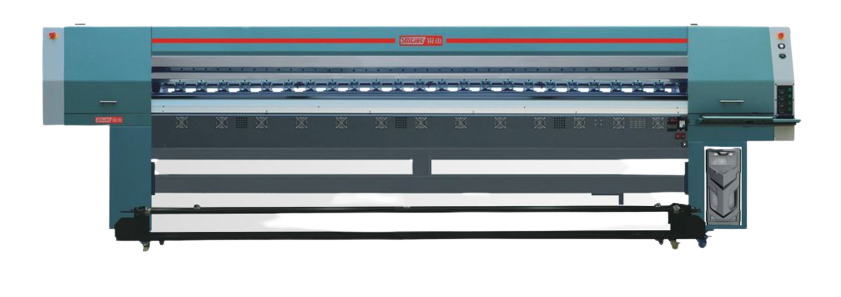

SMTJET 3302

STARFIRE

Features

Download PDF

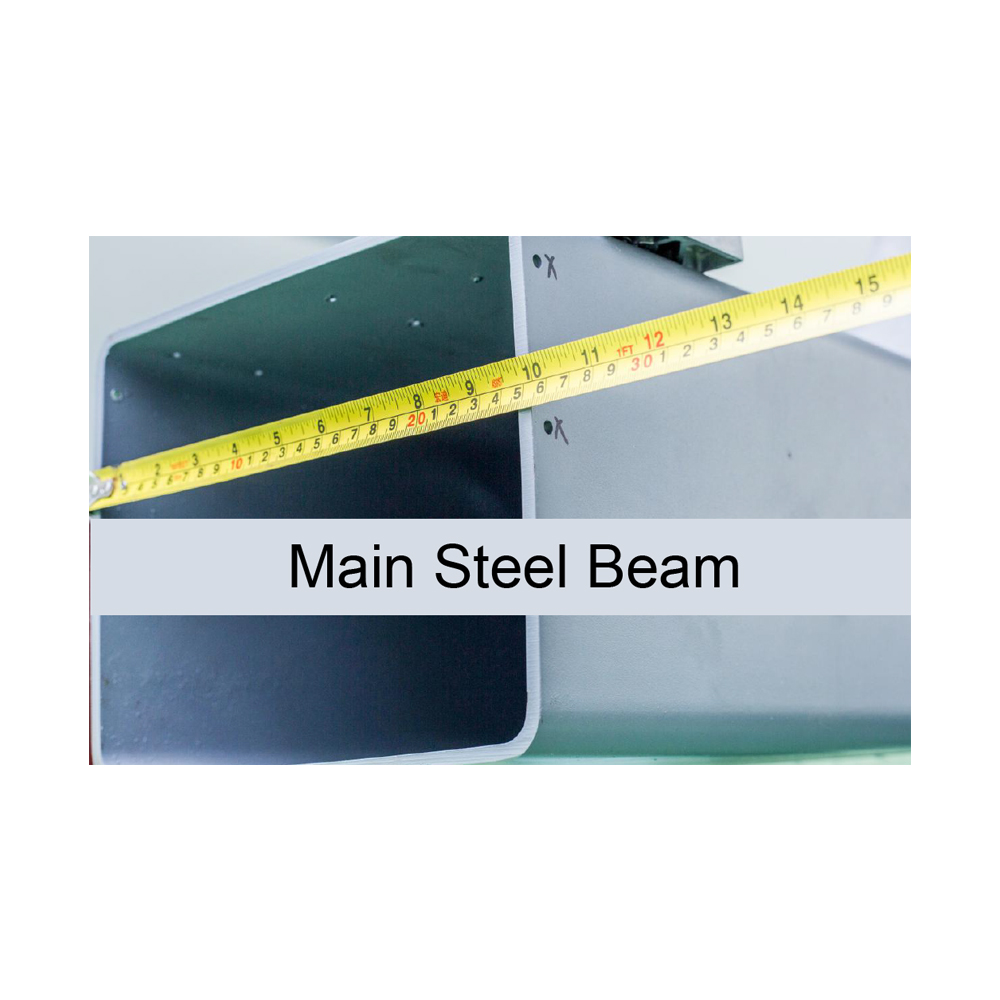

1. 20*10*0.5CM Heavy-duty steel, more stable, high precision and strong pressure resistance
2. Wholly processed by professional high precision CNC milling machine, quality assurance
3. Deformation resistance to pressure
4. Optional Independent take up system

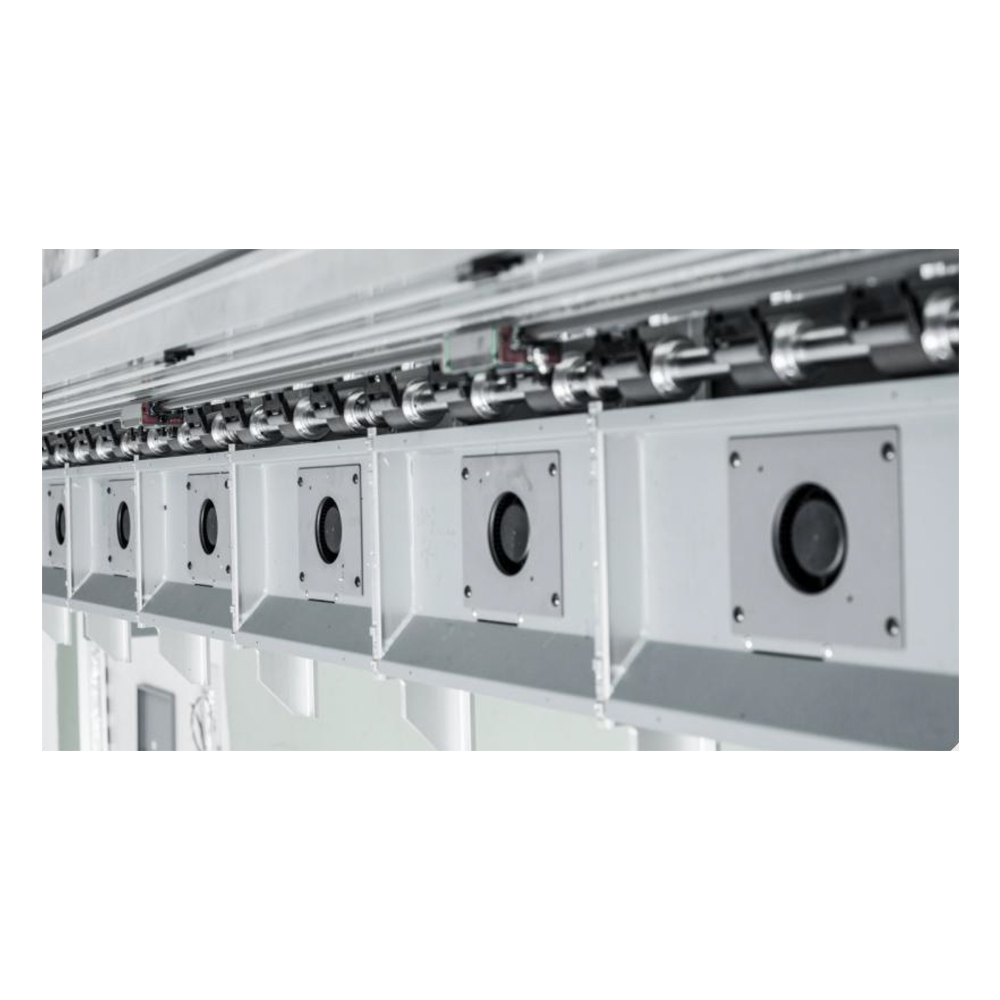

5. 3 sections of heating system: back arc plate, middle printing platform and front arc plate heating,
efficiently improves the drying speed to make printing more efficient & time saving.

BRAND

SMTJET

MODEL

3302

RIP SOFTWARE

Maintop / Optional Photoprint

PRINT HEAD

StarFire SG1024 MC
StarFire SG1024 SC
KM 1024i

Printing Speed

10 PL

2 HEADS

2PASS 124sqm/H
3PASS 89sqm/H
4PASS 69sqm/H

25 PL

4 HEADS

2PASS 248sqm/H
3PASS 178sqm/H
4PASS 138sqm/H

INK TYPE

ECO SOLVENT INK / SOLVENT INK

SPECIFICATION

IMAGE FORMAT

BMP/TIFF/EPS/PDF/AI/JPEG

TAKE UP DEVICE

take up system (optional)

HEATING & DRYING

Front& Back heating , Infrared Drying

CONTROL SYSTEM

WIN7/WIN10 64 bit System,CPU：I5 Above, Ram:4G Above, USB2.0 Port

POWER SUPPLY

AC220V，50H ± 10％

WORKING CONDITION

TEMPERATURE 20C-30C,HUMIDITY60%-70%

G.W/N.W

1100kg/950 kg

PACKING SIZE

4860*1200*1100 mm

PRINTING MATERIALS

PPP Paper, Vinyl Sheet, Film, Coated Paper, Banner, Canvas, Adhesive Vinyl Sheet, Banner
