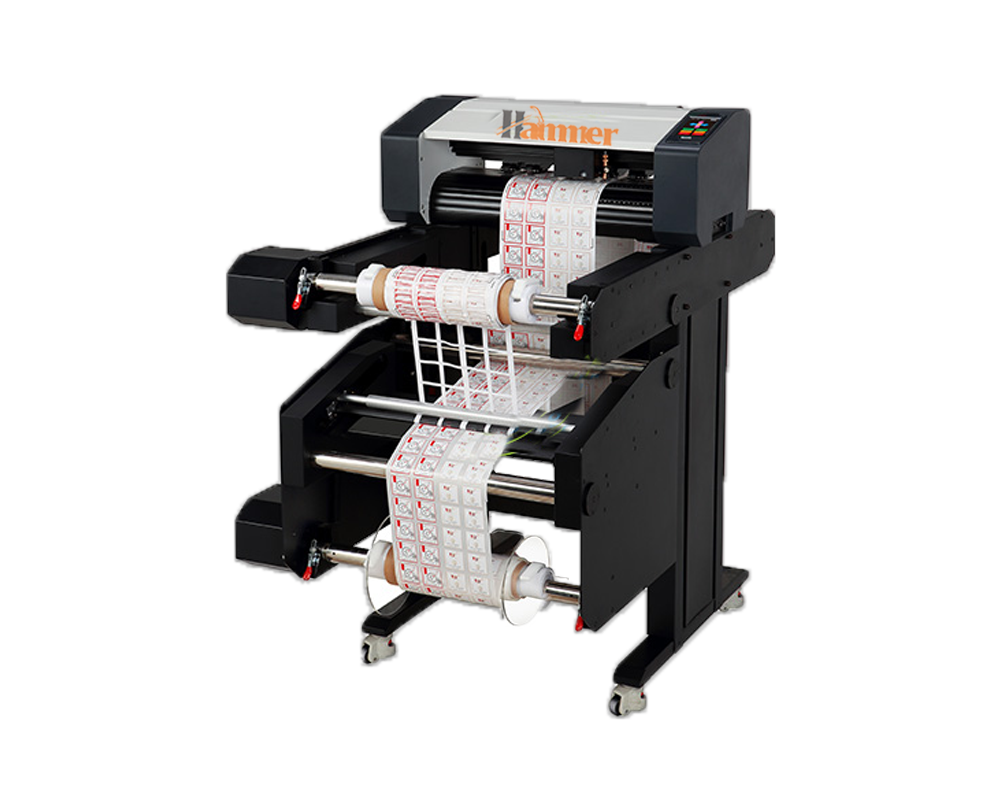

R3 Roll Label Die Cutter

HAMMER


SPECIFICATION


MODEL

R3

Mainboard

32-bit ARM7 CPU 168MHz, 128Mb High-speed CACHE memory

Control Panel

11 membrane buttons+3.0-inch touch screen

Driver

High speed, big power step motor, micro-step driver

Maximum Cutting Width

300mm

Maximum Cutting length

Unlimited (in normal: one roll label is about 200 meter at least)

Maximum Cutting Speed

800mm/s

Cutting force

10-1000 (digital adjustment)

Mechanical Precision

mm0.025

Repeatable Precision

0.025

Type of Plotter Pen

All type diameter 11.4mm plotter pen

Plotter instruction

Compatible DM/PL,HP/GL

Interface

USB/ U disk/ Serial Port/ WIFI (Optional)

Power Supply

AC220V/110V, 50Hz
