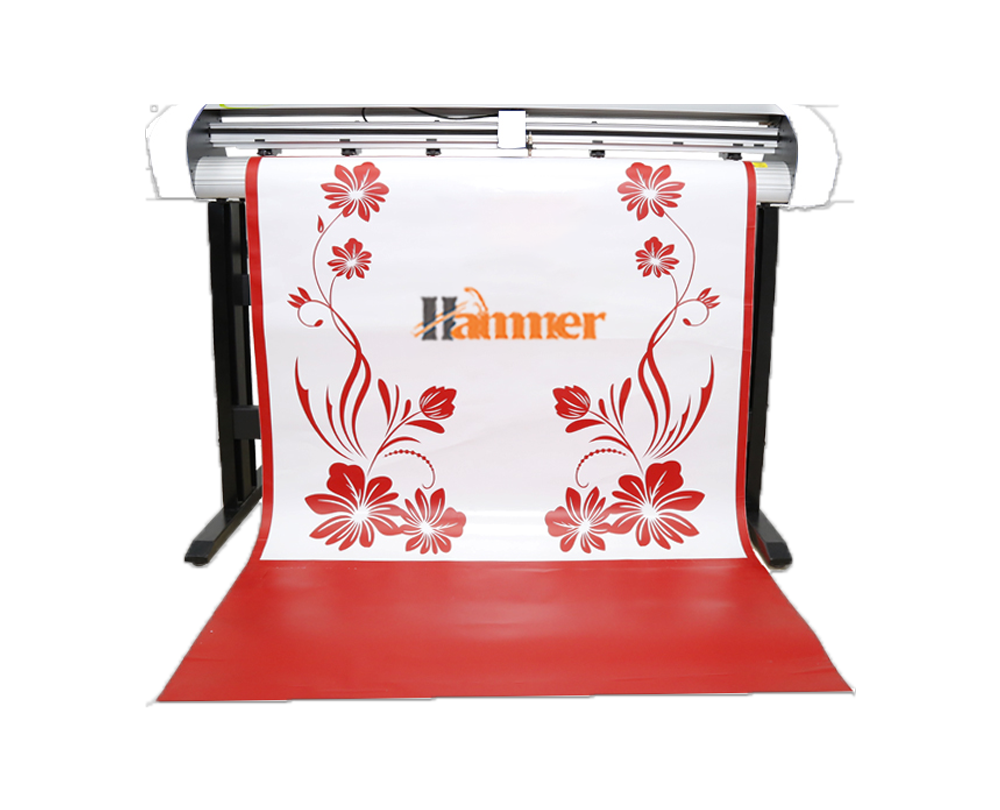

C-48L

Features

High-precision, ensure 2mm letters cutting
Working offline with USB flash
With super clear resolution display
With high-precision steel axes, ensure 10meters paper feeding
New adjustable pinch roller
Bluetooth or WiFi Wireless transfer
Diverse software options: Signmaster /Flexi/AI/ Artcut /CorelDraw
128Mb high-speed CACHE memory
Semi-automatic contour cutting
With repeat function:0-500 times

Optional functions

Bluetooth or WiFi Wireless transfer
Diamond reflective film cutting
Basket

SPECIFICATION

Media way

floor stand

Mainboard

32-bit ARM7 CPU, 168MHz, 128Mb High-speed CACHE memory

Control Panel

9 industrial silicone buttons+128*64 industrial screen

Driver

High speed, big power step motor, micro-step driver

Maximum Paper Feed Width

1410mm

Maximum Cutting Width

1300mm

Maximum Cutting Speed

600mm/s

Cutting force

10-500 (digital adjustment)

Mechanical Precision

mm0.025

Repeatable Precision

0.025

Type of Plotter Pen

All type diameter 11.4mm plotter pen

Plotter instruction

Compatible DM/PL,HP/GL

Interface

USB/ U disk/ Serial Port/ WIFI (Optional)

Power Supply

AC220V/110V, 50Hz

Power Consumption

80W

Knife (Blade)

Imported hardness alloy steel blade
