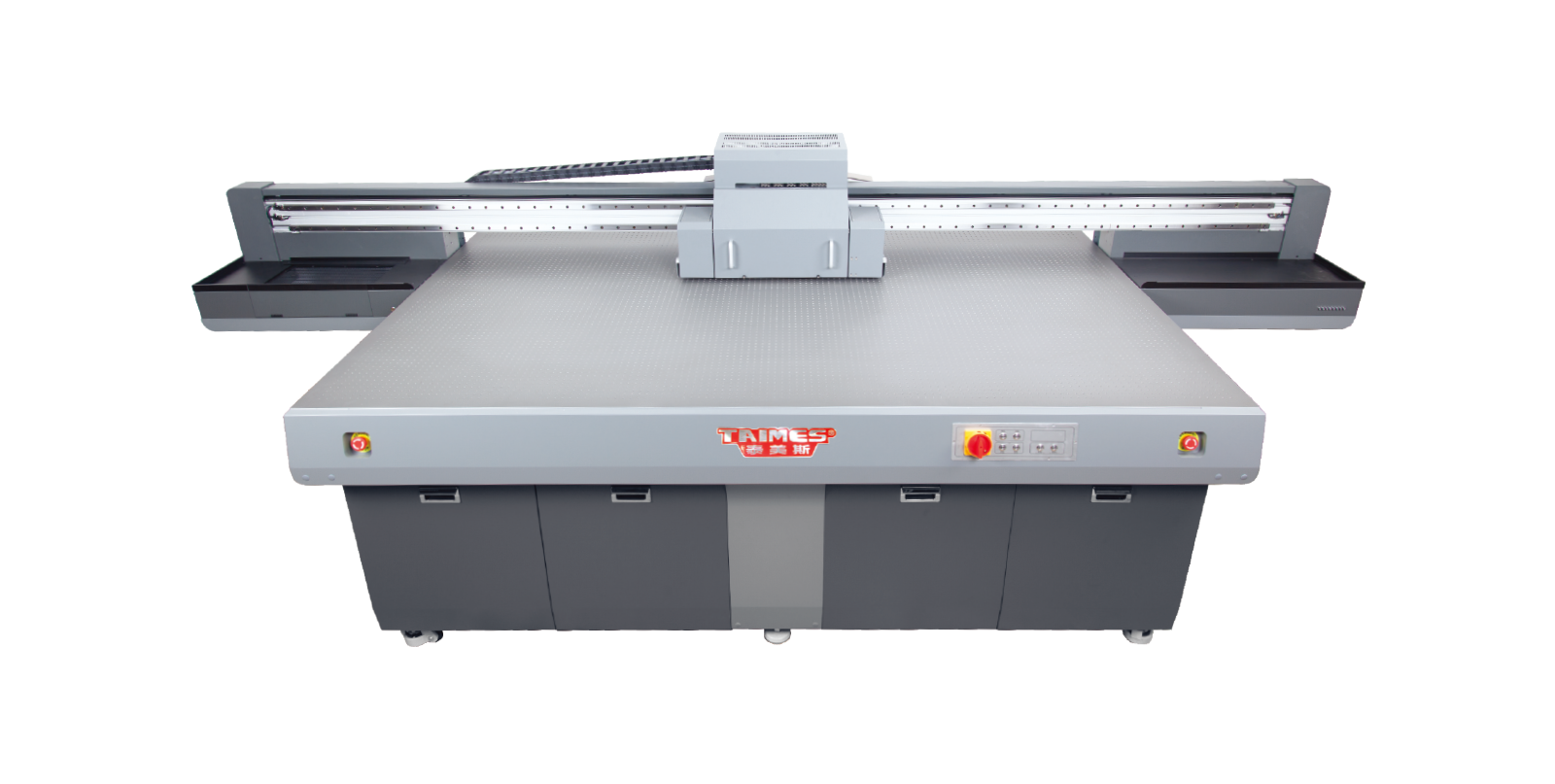

T2513UV

TAIMES


Features

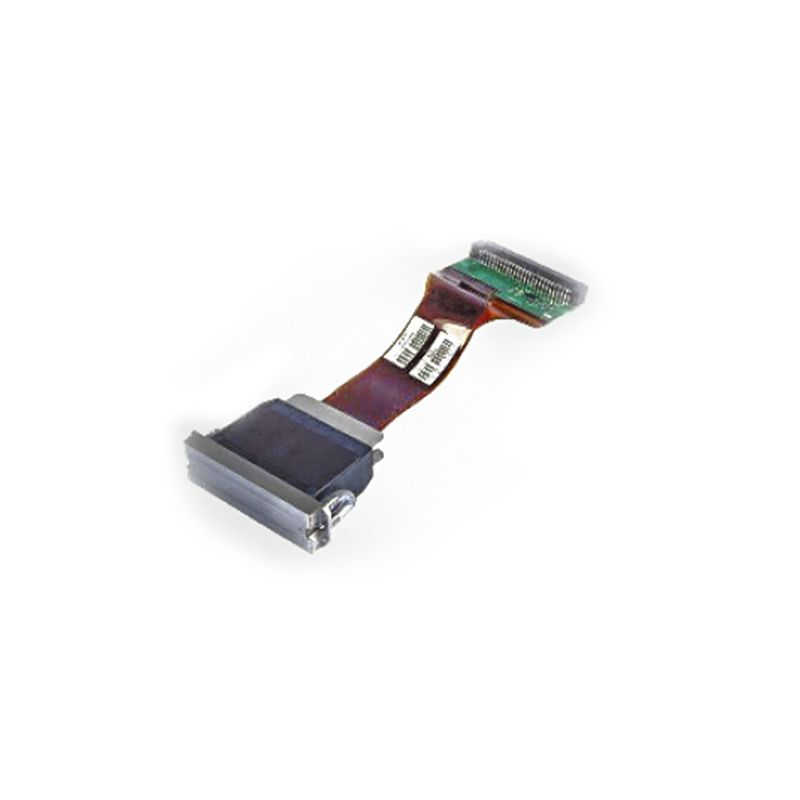

1. Using industry printhead Ricoh GEN5 nozzle, Konica-Minolta reliable high-performance KM1024I Print-head ,
easy to achieve color, white / color, white + Varnish and other printing solutions

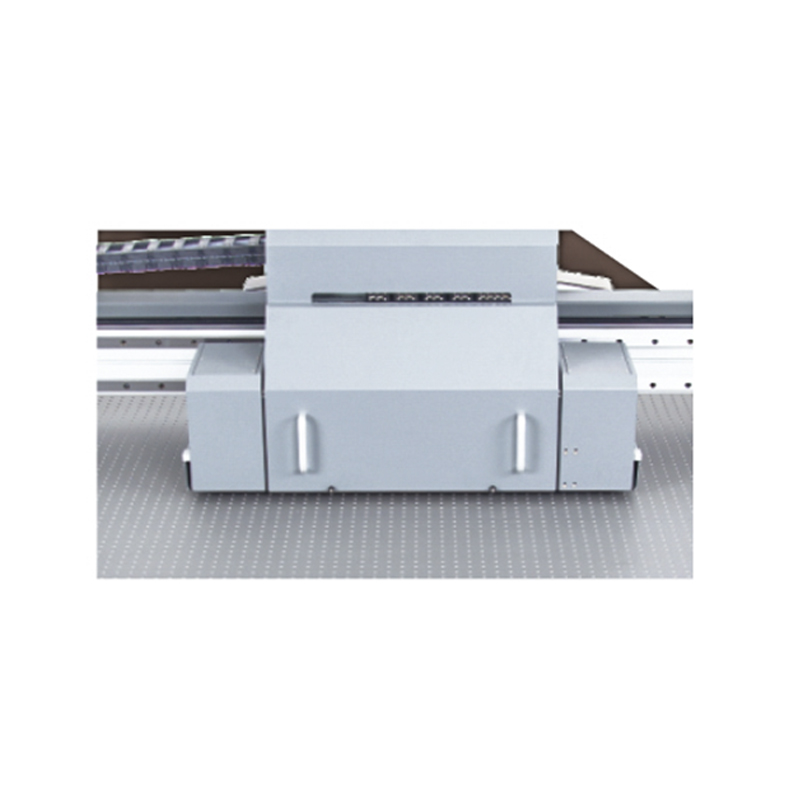

2. Professional UV-LED light-curing system, effectively ensure that the large printing ink drying completely and high quality printing.
3. Japan famous THK linear silent rail, to ensure that the machine print in high-intensity work; wear-resistant, the state remained excellent
4. Germany imported igus towline and flexible cable,ensure ink supply system work smoothly.
5. Professional negative pressure ink system; to adapt to a variety of complex printing conditions, make sure printing in good condition.
6.Professional-grade honeycomb adsorption platform, light weight, large bearing not only ensure that the performance of the platform is not affected, but also to attract any position on the platform suction uniform; surface after hard oxidation, making the surface anti-scratch wear-resistant platform, preservative.

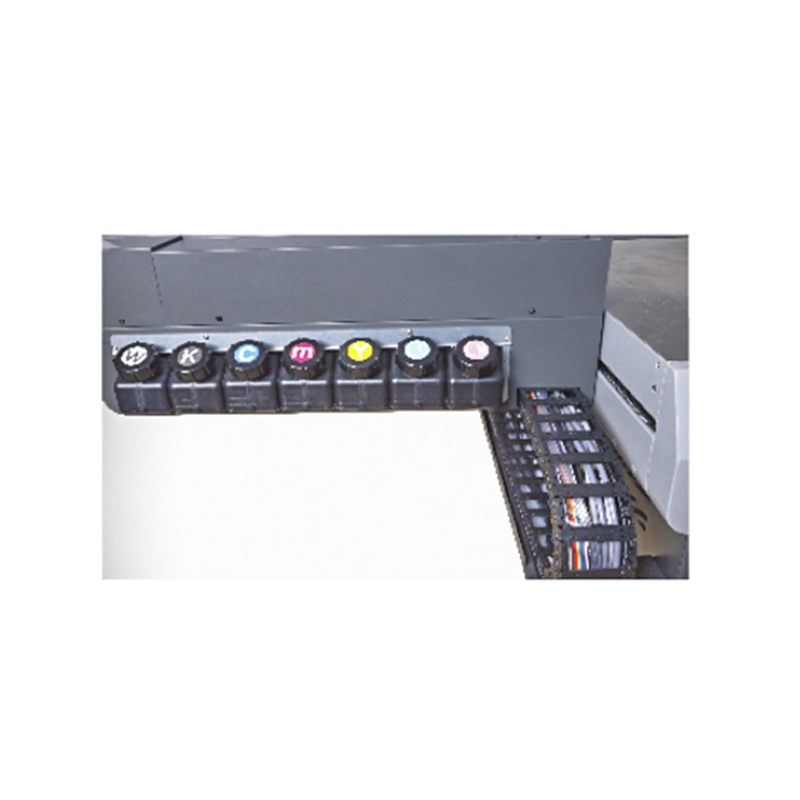

7. The ink level monitoring and alarm system effectively prevents the ink entering the air, and avoid to affect the printing quality caused by human factors.

BRAND

TAIMES

MODEL

T2513UV

RIP SOFTWARE

Photoprint

PRINT HEAD

RICOH-GEN5-7PL

Printing Speed

7 PL

3 H/T

  • 720X600dpi 14sqm/H
  • 720X900dpi 10sqm/H
  • 720X1200dpi 6sqm/H

7 PL

6 H/T

  • 4PASS 28sqm/H
  • 6PASS 20sqm/H
  • 8PASS 12sqm/H

INK TYPE

Environmental protective UV ink

SPECIFICATION


Print Technology

Industrial piezoelectric inkjet

Colour Configuration

4Color/6Color/White/Varnish

Operating System

Win7/8 64bits

Image Format

TIFF/JPEG/EPS/PDF/AI

Printhead Height

2~100mm Above Media Adjustable

Media Type

Wood panel, Aluminum panel, door plank, paperboard, PVC expansion sheet, ceiling panel, glass, ceramics, acrylic, PVC, etc.

Maximum Media Width

Panel: 2,750mm(width)x1,400mm(depth)

Maximum Printing Area

Panel: 2,680mm(width)x1,220mm(depth)

UV Curing Lamp

LED-UV A pair

Data Interface

Hi-Speed USB 2.0

Machine Dimension/Weight

L4,030XW1,730XH1,330mm / Net Weight 960KG

Temperature & Humidity

15-32℃ (59 to 90˚F) [20℃ (68˚F) or more recommended
