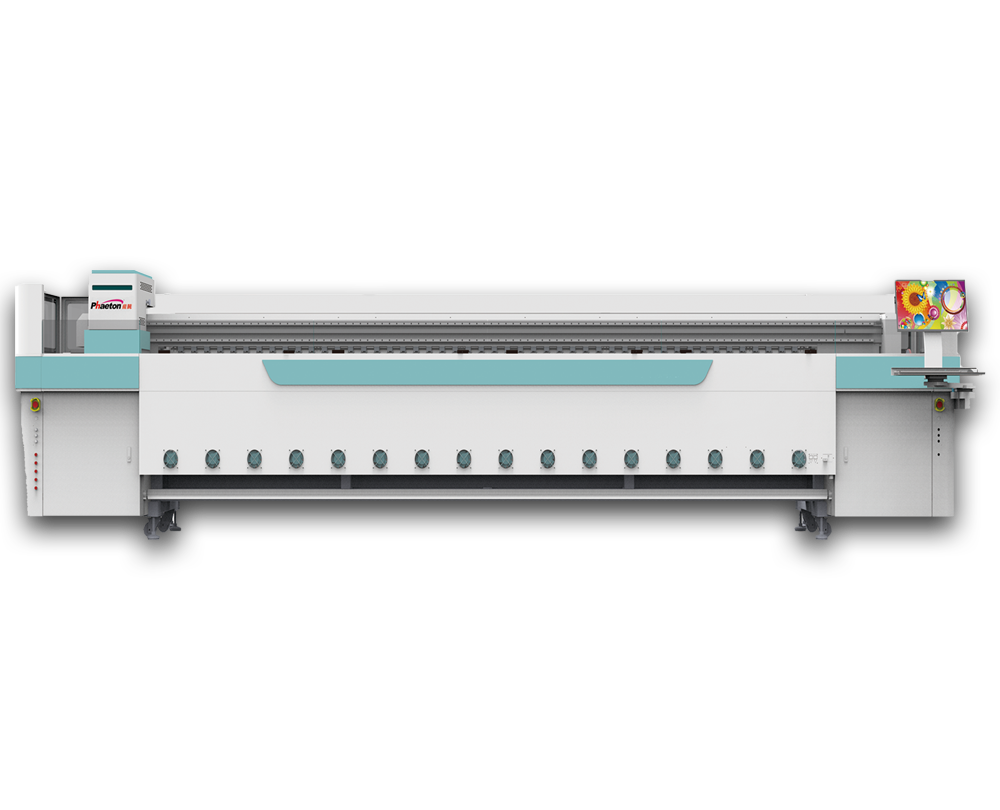

X+ SERIES

PHAETON


Features

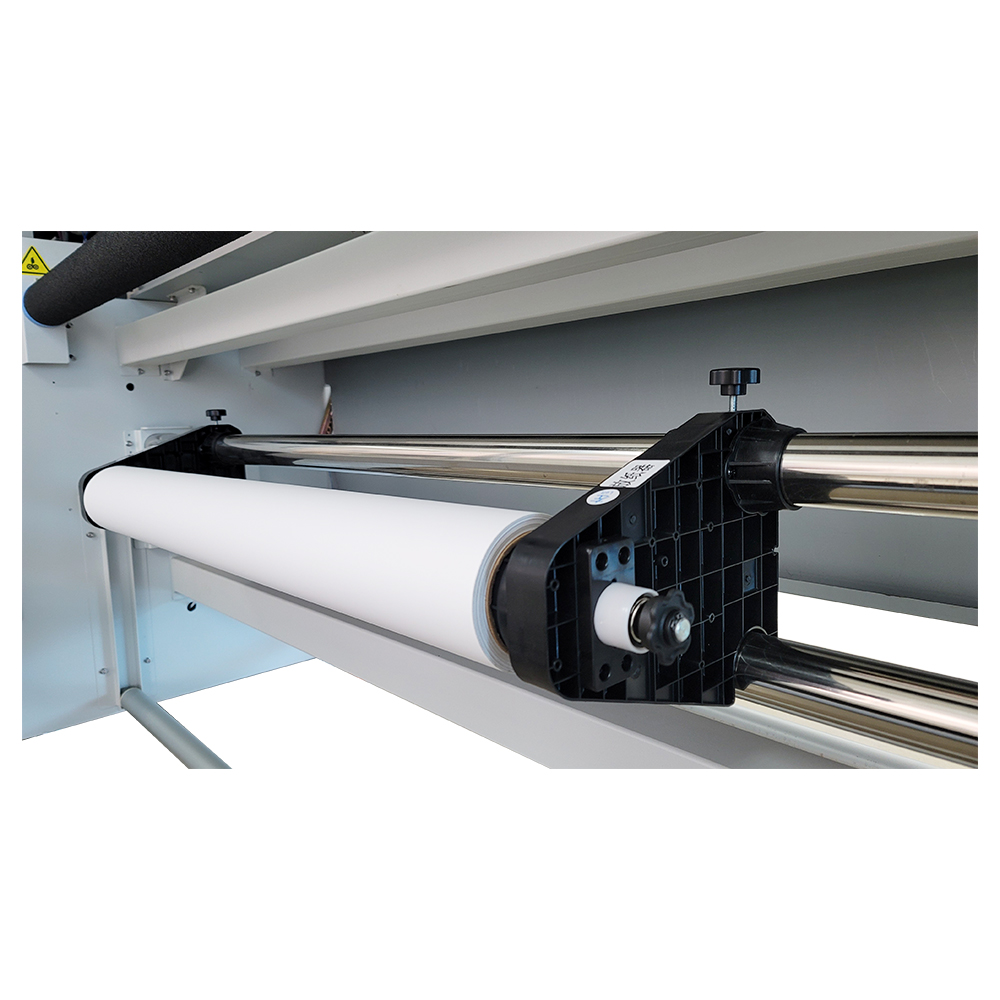

1. Lead material by rubber bar avoids the material from tangling up..
2. Equips with infrared heater with recalling fan system to dry the printout effectively.
3. Postion for monitor and keyboard is resved for convenient operating station.
4. Equips with innovative electrical pinch roller system which is controlled by a button. Thoughtful consideration for operates.
5. Capping cover makes the daily maintenance more efficient and convenient.

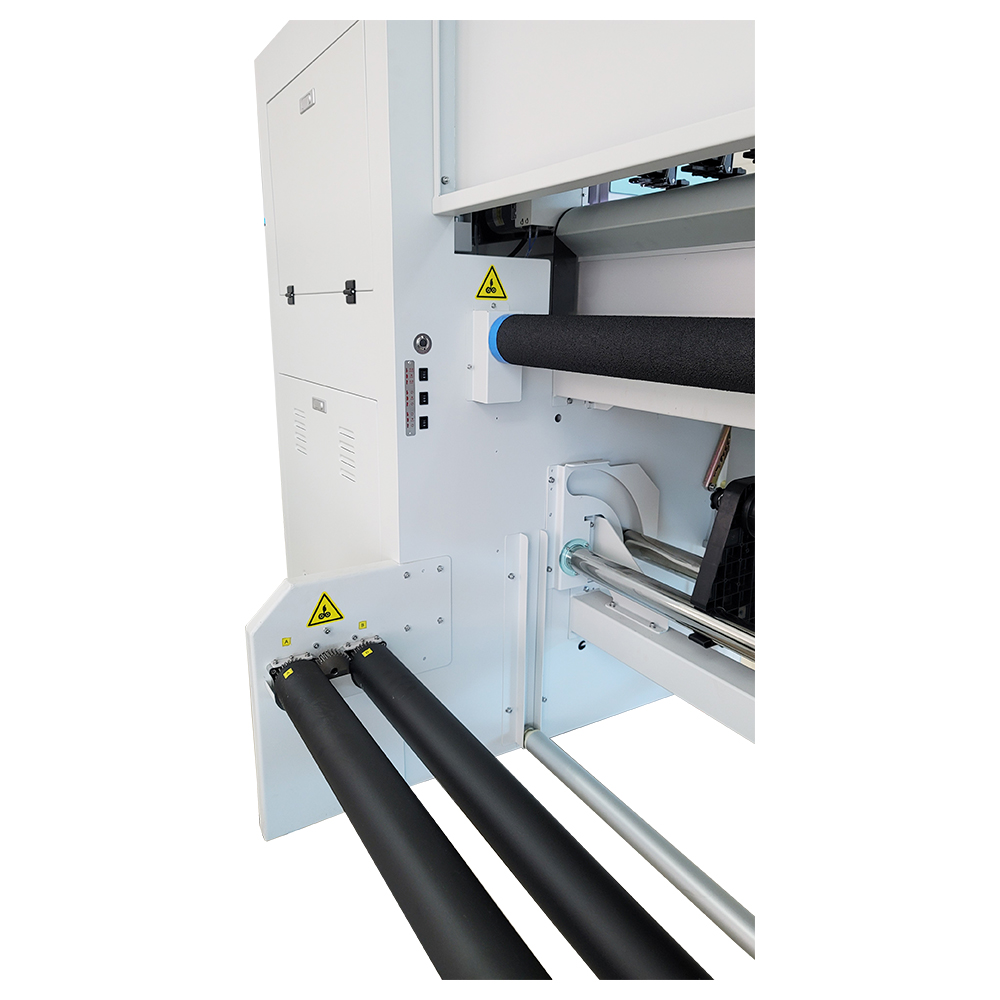

6. A balance bar is equipped at the take-up to make the material neater.
7. The LED lamo on the printing platform helps to observe the printout clearly.
8. USB interface is equipped at the operating station for more convenient opreation.
9. The luxury machine body enchances the image of your enterprise, you will get a good value for the money that you spent on X+ SERIES

BRAND

PHAETON

MODEL

UD-32D12XA

RIP SOFTWARE

MAINTOP, ULTRA PRINT, PHOTOPRINT, WASATCH, ONYX

PRINT HEAD

SPT-ALPHA, KM 512i, STARFIRE

Printing Speed

SPT-ALPHA

  • 2PASS 395sqm/H
  • 3PASS 277sqm/H
  • 4PASS 208sqm/H
  • 6PASS 145sqm/H
  • 8PASS 109sqm/H

KM 512i

  • 2PASS 299sqm/H
  • 3PASS 198sqm/H
  • 4PASS 149sqm/H
  • 6PASS 99sqm/H
  • 8PASS 47sqm/H

STARFIRE

  • 2PASS 343sqm/H
  • 3PASS 230sqm/H
  • 4PASS 171sqm/H
  • 6PASS 115sqm/H
  • 8PASS 85sqm/H

INK TYPE

COLOR

4 Color(C,M,Y,K)

TYPE

Solvent Ink

CAPACITY

5L per Main Tank of Each Color

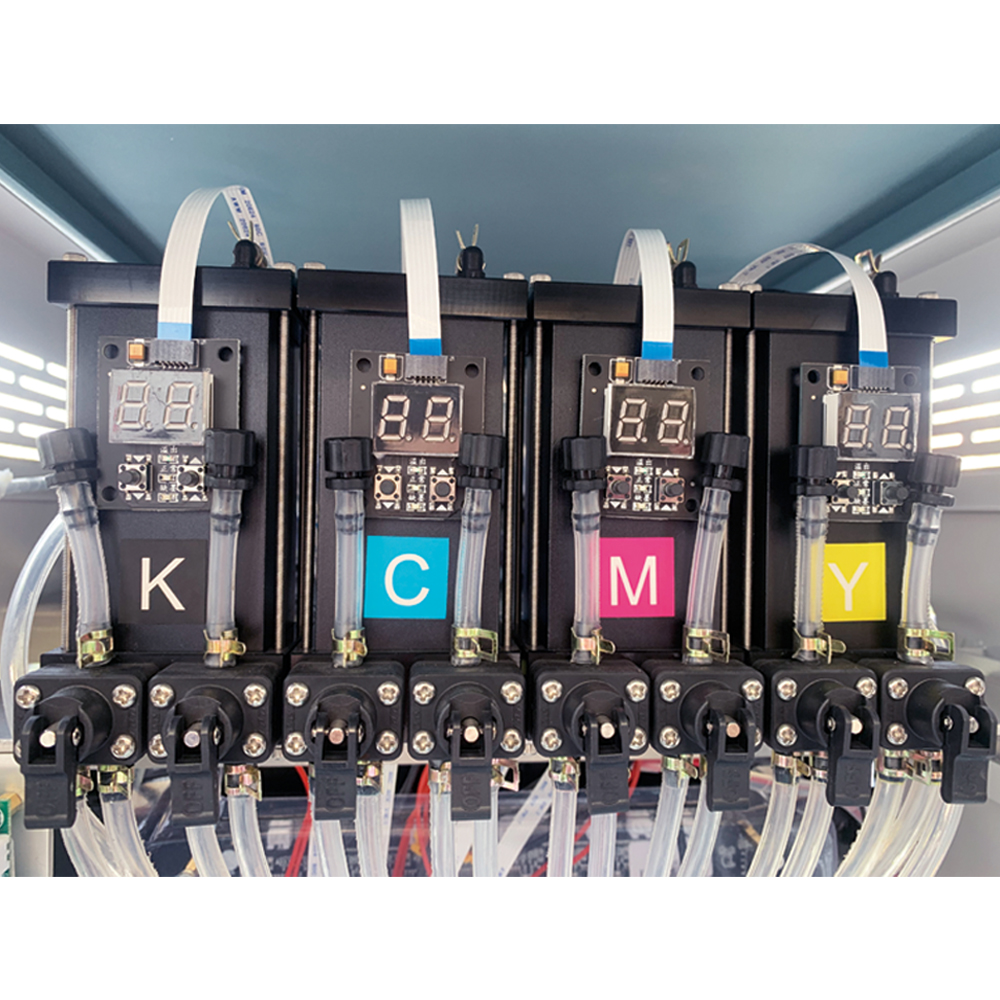

INK SUPPLY

Low Ink Dectector,Auto or Manual Ink Supply System

SPECIFICATION


Maximum printing width

3200MM

Maximum media width

Maximum 3200mm

Auto media feeding system

Equipped(120KG Max media weight 120KG)

media type

Vinyl, Polyester, Flex, Back-lit film, PS Board, KT Board, PVC Board, etc

auto cleaning system

Individual postive pressure cleaning, Anti-clogged flash function & Capping system

pre-heating & drying System

Equipped

Clamp

Equipped

Print interface

USB 3.0

printhed height

2 to 6mm from media

Input power

3000 W + 6500 W

Machine dinmesion / N.M

4892x1215x1678

Packing dinmesion

5100x1100x1900
