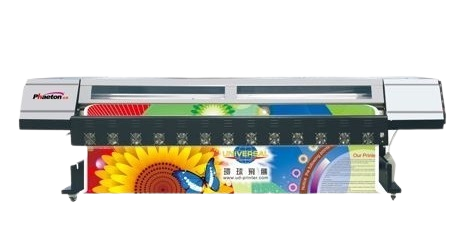

LE SERIES

PHAETON


Features

1. Lead material by rubber bar avoids the material from tangling up..
2. Equips with infrared heater with recalling fan system to dry the printout effectively.
3. Postion for monitor and keyboard is resved for convenient operating station.
4. Equips with innovative electrical pinch roller system which is controlled by a button. Thoughtful consideration for operates.
5. Capping cover makes the daily maintenance more efficient and convenient.
6. A balance bar is equipped at the take-up to make the material neater.
7. The LED lamo on the printing platform helps to observe the printout clearly.
8. USB interface is equipped at the operating station for more convenient opreation.

BRAND

PHAETON

MODEL

LE SERIES

RIP SOFTWARE

MAINTOP, PHOTOPRINT

PRINT HEAD

SPT-ALPHA, KM 512i

Printing Speed

SPT-ALPHA

  • 2PASS 395sqm/H
  • 3PASS 277sqm/H
  • 4PASS 208sqm/H
  • 6PASS 145sqm/H
  • 8PASS 109sqm/H

KM 512i

  • 2PASS 299sqm/H
  • 3PASS 198sqm/H
  • 4PASS 149sqm/H
  • 6PASS 99sqm/H
  • 8PASS 74sqm/H

INK TYPE

COLOR

4 Color(C,M,Y,K)

TYPE

Solvent Ink

SPECIFICATION


Maximum printing width

3200MM

Maximum media width

Maximum 3200mm

Auto media feeding system

Double bar feeding 80 kgm, single bar takeup 80 kgm

media type

Vinyl, Polyester, Flex, Back-lit film, PS Board, KT Board, PVC Board, etc

Print interface

USB 3.0

Input power

5350 Watt

N.W./G.W.

390/633 Kg

Machine dinmesion / N.M

4750x780x1250

Packing dinmesion

4830x1150x970
