K+ SERIES

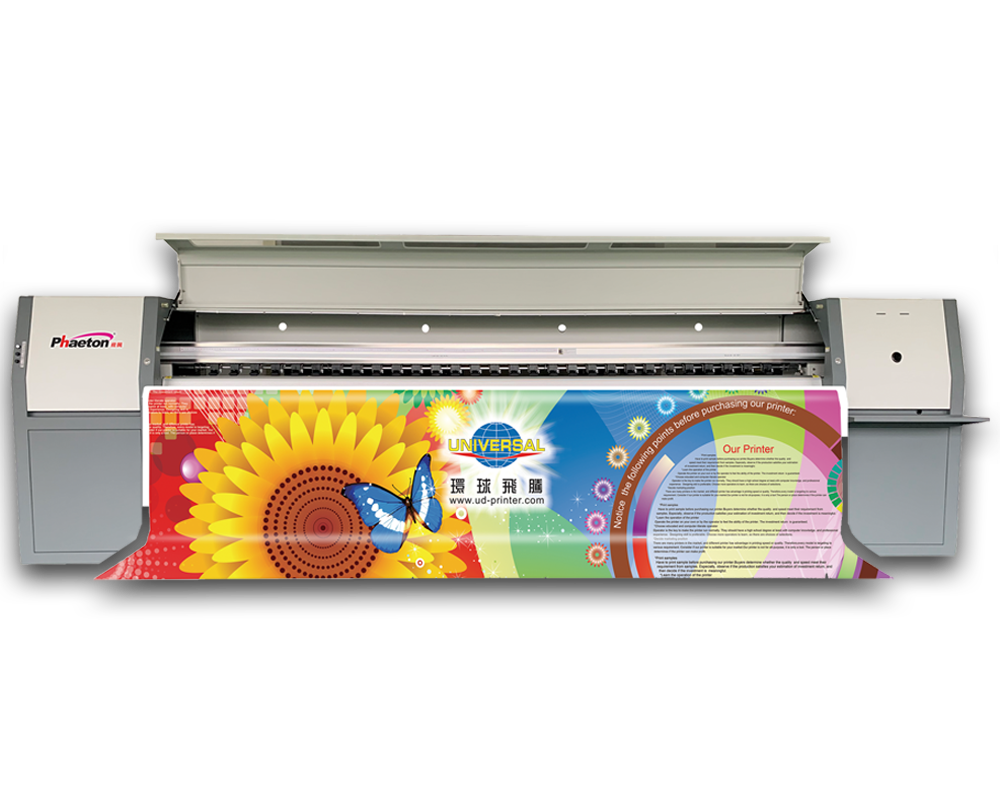

PHAETON


Features

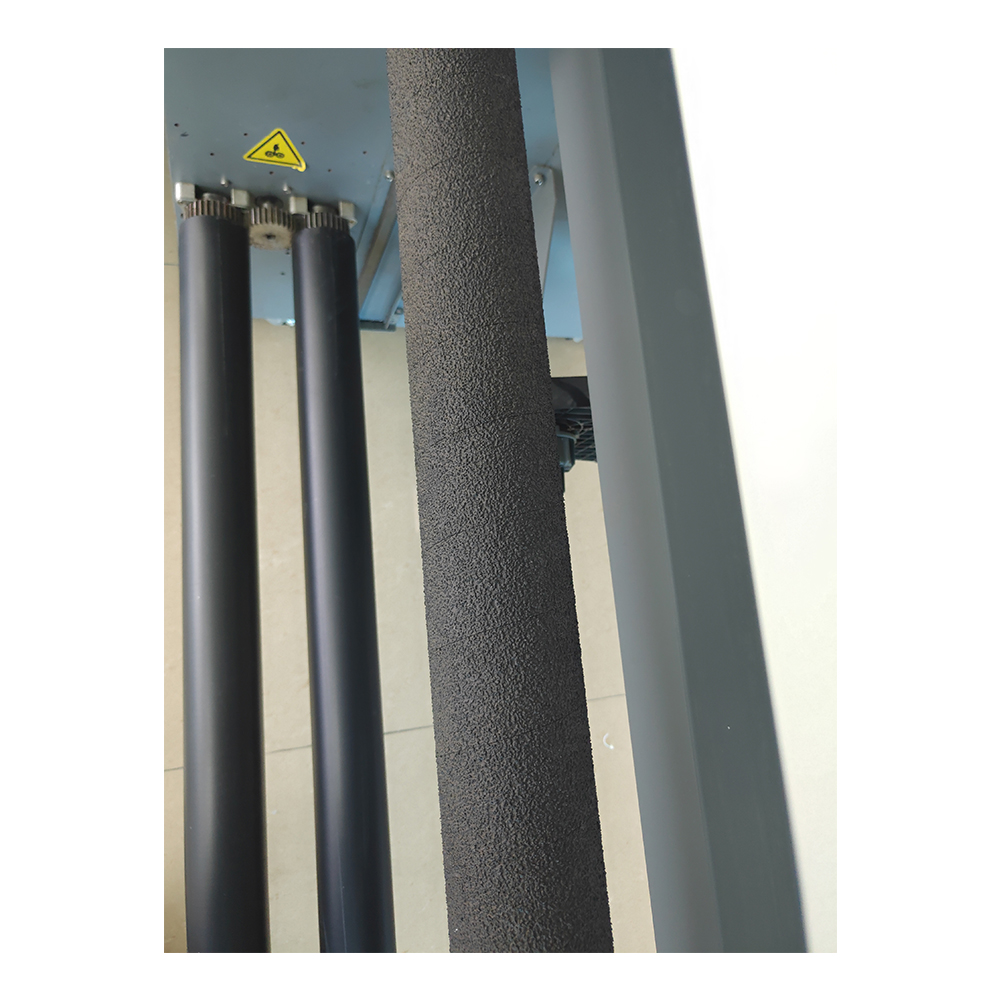

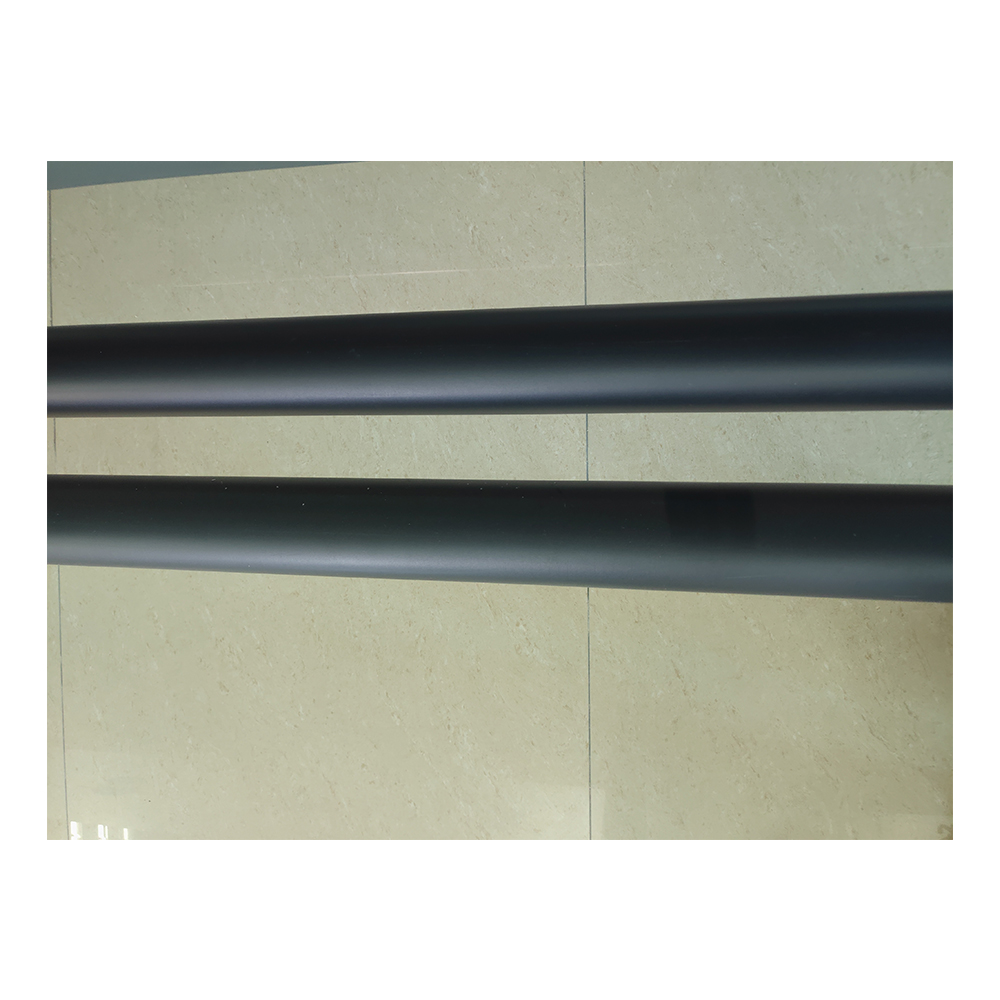

1. Lead material by rubber pole, avoiding the material's stickup.
2. Equipped front/rear drying heater and matching cooling system, making printing picture dry faster.
3. Equipped feeding system of single pole, avoiding the materials excursion and rexaltion.At the same time, also equipped feeding system of double poles, providing flexbile choices, Equips with innovate electrical pinch roller system which is controlled by button. Thoughtful consideration for operators.

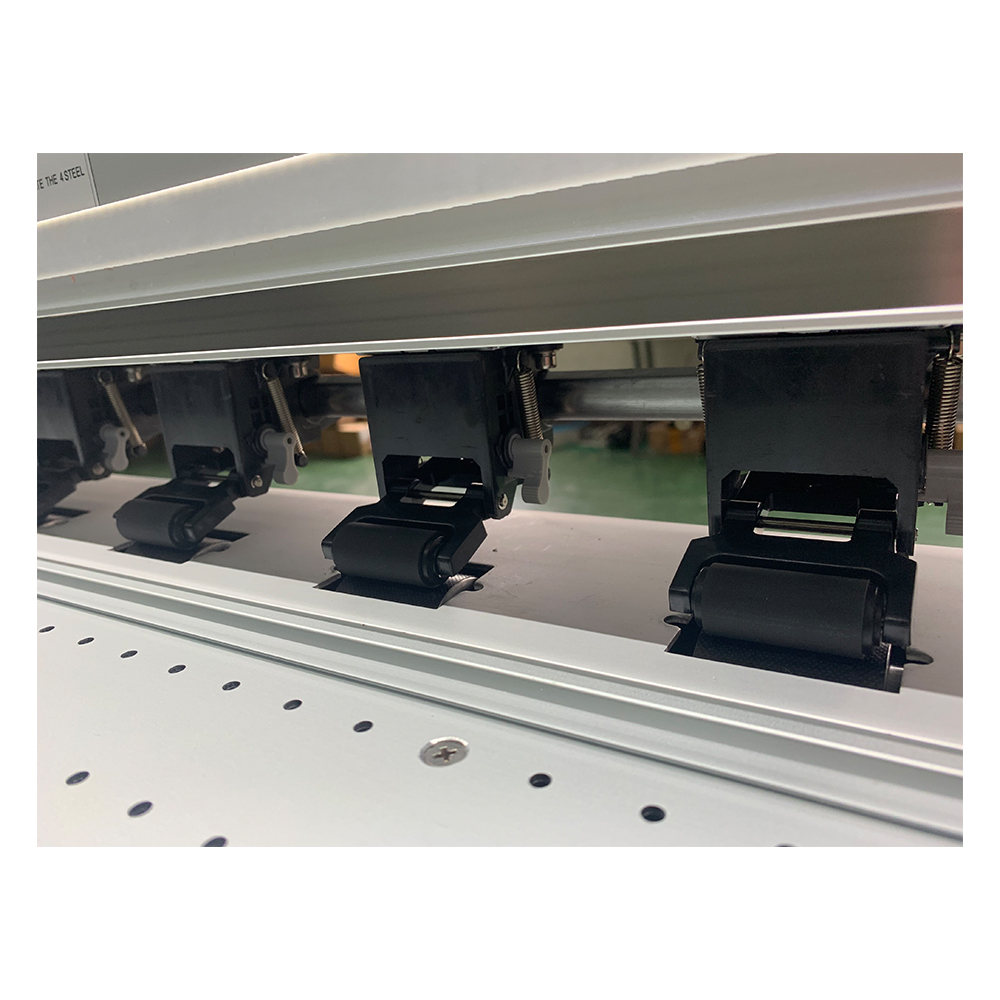

4. Equipped innovate electric pinch roller system controlled by 4buttons around the machine, Thoughtful consideration for operator a balance is equipped at the take-up to make the material neater
5. Set up a place for monitor, making good look and convenient operation.

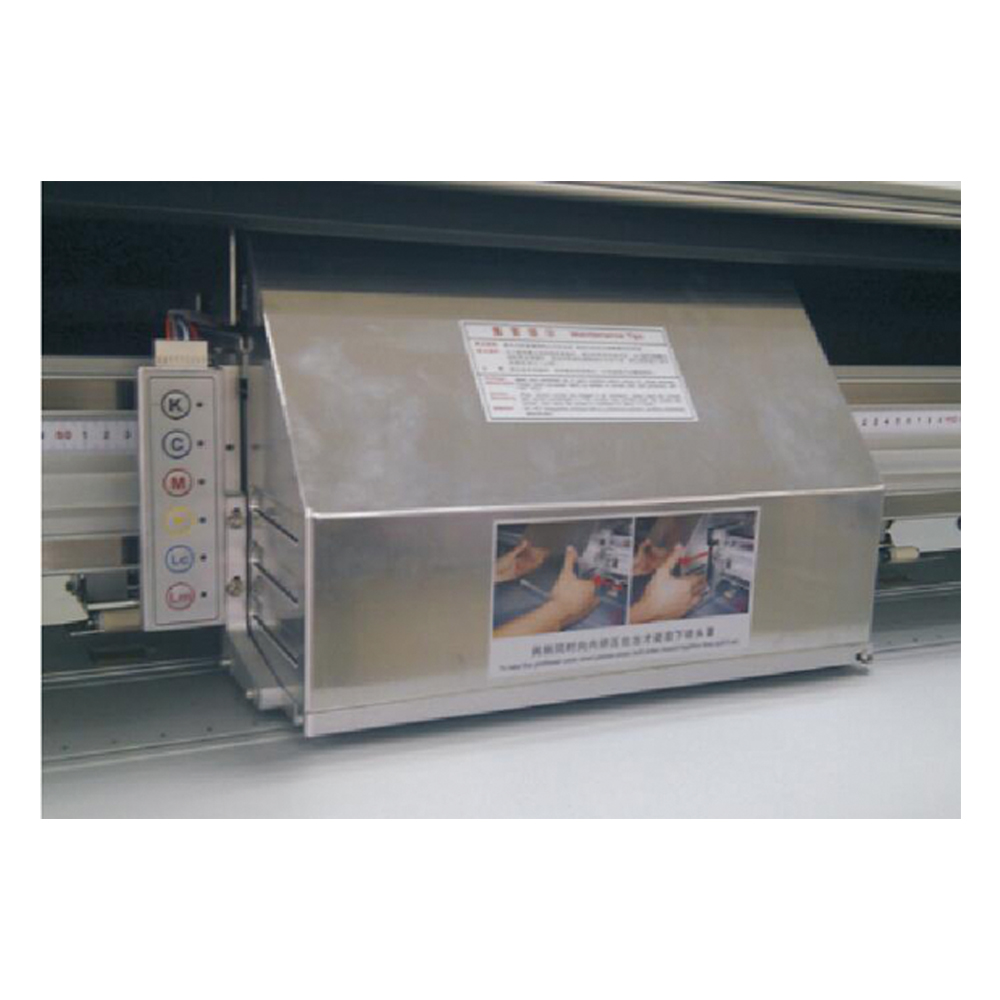

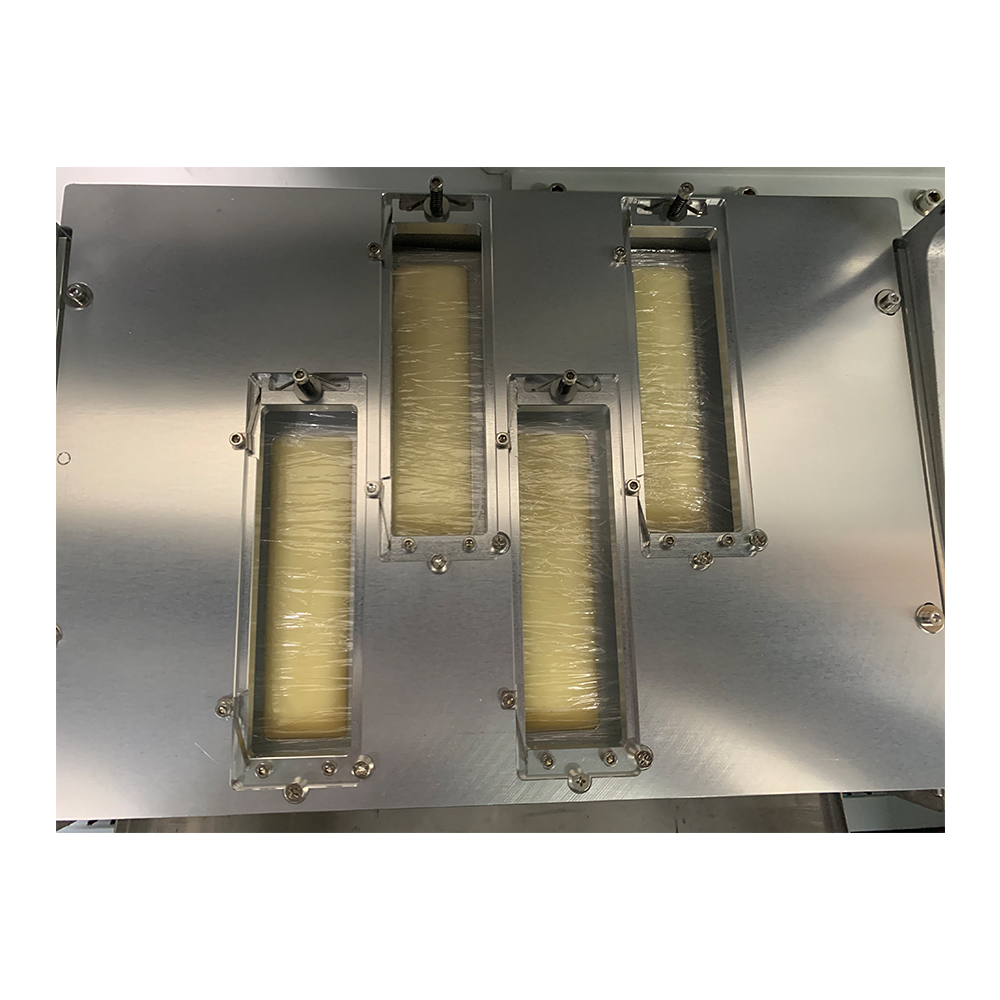

6. USB interface is equipped at the operating station for more convenient opreation. Equipped efficient and convenient capping cover benefiting for the daily maintenance of print head.
7. Equipped a balance bar for material taking up, making material taking up more regular.
8. Equipped printing platform lamp, making printing picture obvious.

BRAND

PHAETON

MODEL

UD-32D8K+

RIP SOFTWARE

MAINTOP, ULTRA PRINT, PHOTOPRINT, WASATCH, TOPAZ

PRINT HEAD

SPT-ALPHA, KONICA 512i

Printing Speed

25PL

SPT-ALPHA

  • 2PASS 265sqm/H
  • 3PASS 178sqm/H
  • 4PASS 132sqm/H
  • 6PASS 90sqm/H
  • 8PASS 66sqm/H

30PL

KONICA 512i

  • 2PASS 230sqm/H
  • 3PASS 160sqm/H
  • 4PASS 120sqm/H

SPECIFICATION


MEDIA TYPE

Vinyl, window Film, Polyester, Flex,
Back-lit Film, Etc.

Auto media feeding system

Equipped (Max, Media weight 80KG)

auto cleaning system

Individual postive pressure cleaning
Anti-clogged flash function & capping system

pre-heating & drying system

Equipped

Clamp

Equipped

print interface

USB 3.0

input power

8500 Watt

machine dinmesion/ N.W

4786x1000x1350

package dinmesion/G.W

4980x1140x1640
