SMTJET S18S

STARFIRE

Features

25x20x0.6CM Heavy-duty steel,more stable,high precision and strong pressure resistance
Wholly processed by professional high precision CNC milling machine, quality assurance
Integral aluminum alloy beam and platform fixed way make sure its precision and stablity
Deformation resistance to pressure in shipping

BRAND

SMTJET

MODEL

SJ18S-3304

RIP SOFTWARE

MAINTOP 6.0, PHOTOPRINT (optional)

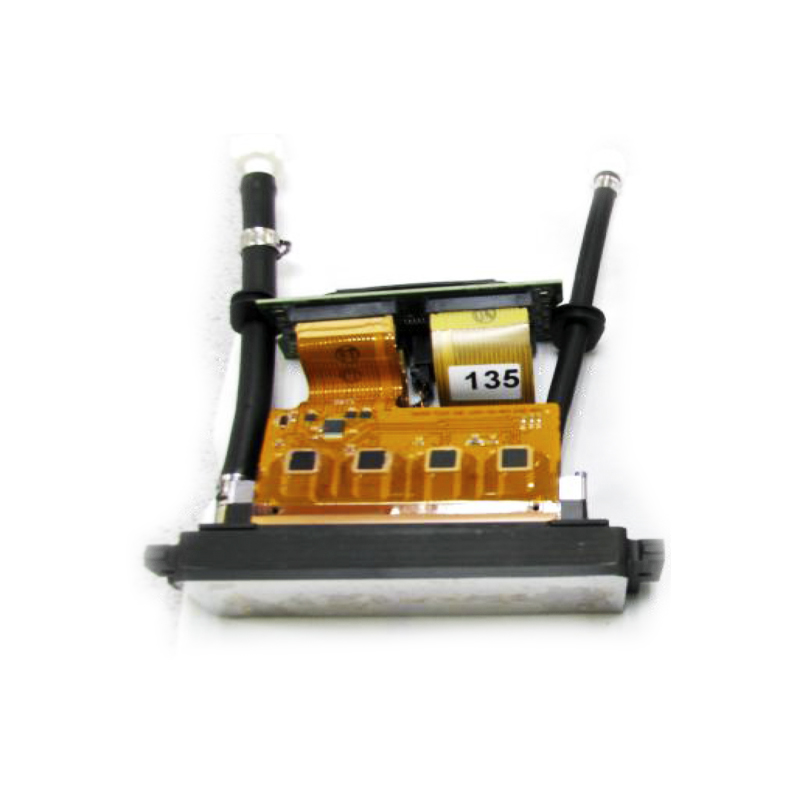

PRINT HEAD

STARFIRE 1024 10PL/25PL

Printing Speed

10 PL

2 HEADS

  • 2PASS 86sqm/H
  • 3PASS 62sqm/H
  • 4PASS 48sqm/H

10 PL

4 HEADS

  • 2PASS 173sqm/H
  • 3PASS 124sqm/H
  • 4PASS 96sqm/H

25 PL

2 HEADS

  • 2PASS 124sqm/H
  • 3PASS 89sqm/H
  • 4PASS 69sqm/H

25 PL

4 HEADS

  • 2PASS 248sqm/H
  • 3PASS 178sqm/H
  • 4PASS 138sqm/H

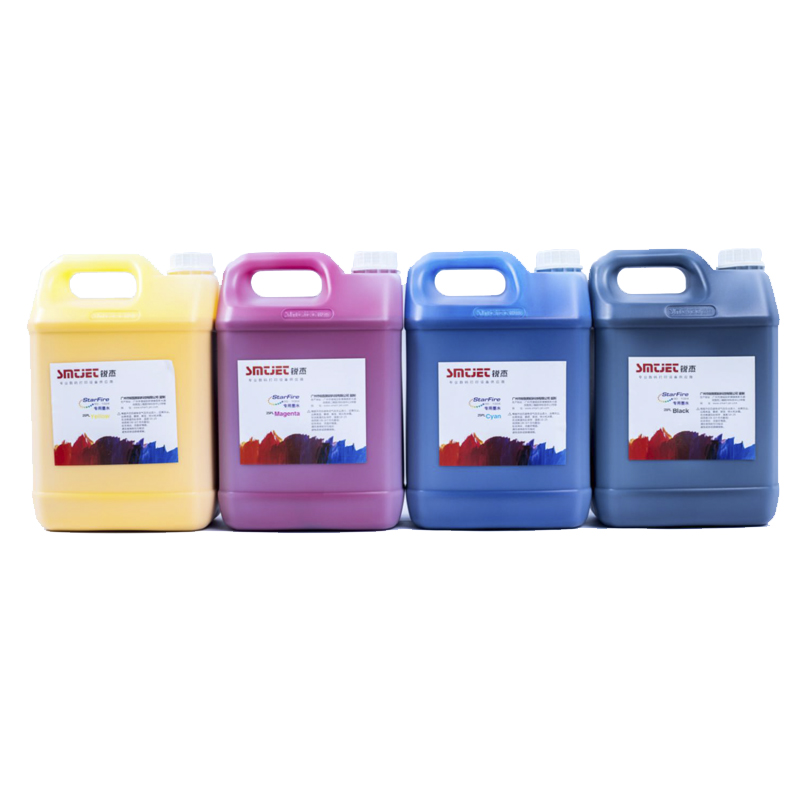

INK TYPE

ECO SOLVENT INK / SOLVENT INK

SPECIFICATION

IMAGE FORMAT

BMP/TIFF/EPS/PDF/AI/JPEG

TAKE UP DEVICE

take up system (optional)

HEATING & DRYING

front and back heating, infrared drying

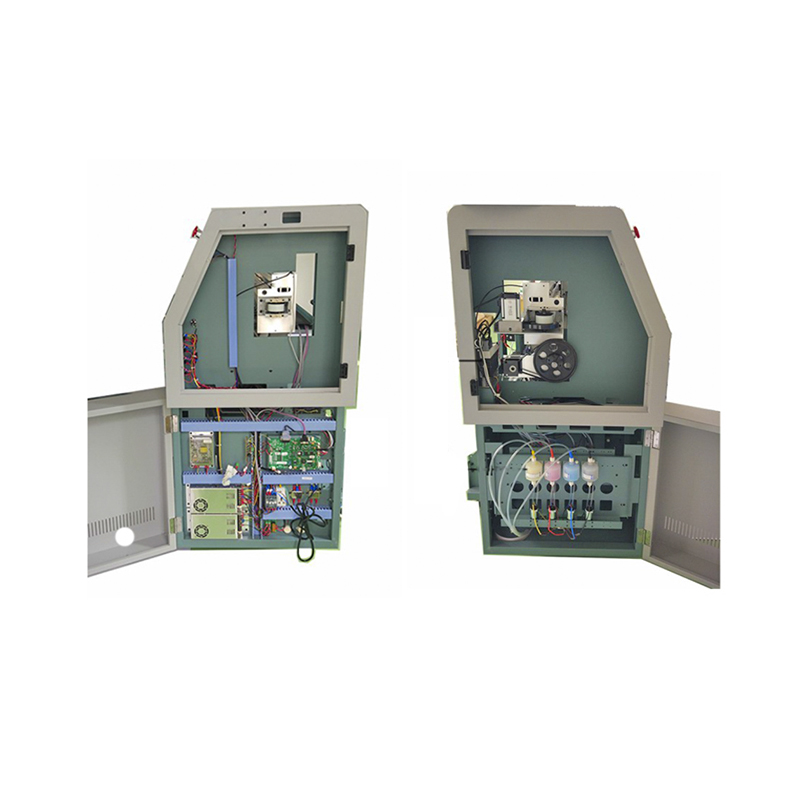

CONTROL SYSTEM

WIN7 64BIT system, USB2.0 PORT

POWER SUPPLY

AC 220V,50H(+/-)10%

WORKING CONDITION

TEMPERATURE 20C-30C,HUMIDITY60%-70%

G.W/N.W

1380 KGM/1035 KGM

PACKING SIZE

4950x1150x1740 mm

PRINTING MATERIALS

PP paper, VINYL sheet, FILM, COATED paper, BANNER, CANVAS, ADHISIVE VINYL sheet
