N1-1325

HAMMER


Features

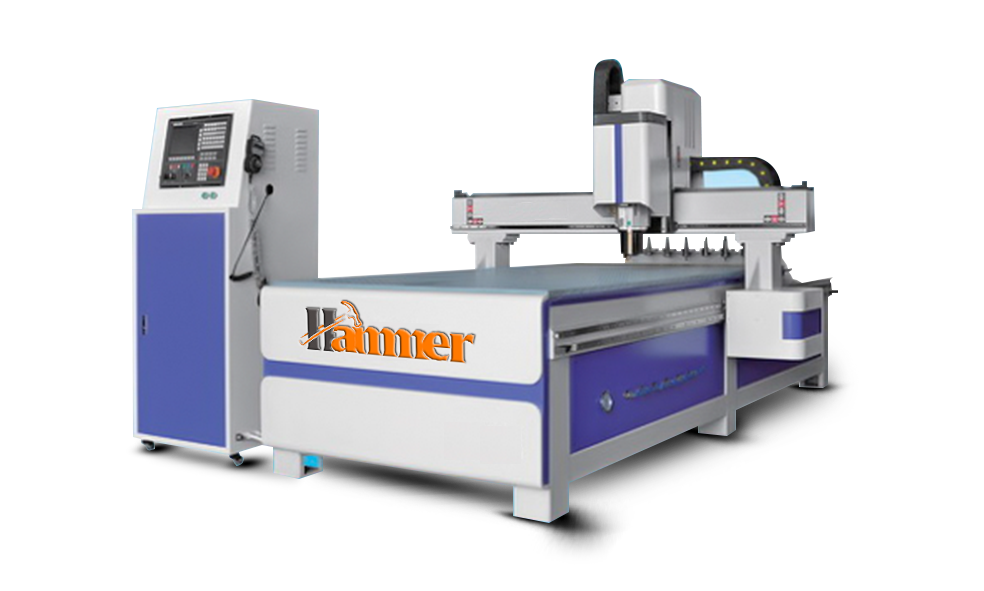

N9-2513ATC adopts a high-precision platform movement method, mainly equipped with world-class Italian Hiteco 9.5kw air-cooled automatic tool change spindle, rotary tool magazine, high-power Yaskawa AC servo motor, German Henry helical gear rack, Taiwan New generation industrial computer, etc. These configurations have advanced performance, stability and reliability. The N9-2513ATC series models are suitable for processing high-precision acrylic crystal letters, molds, cabinet doors, solid wood furniture, and advertising signs.

SPECIFICATION


Table size

Optional

Processing size

1300x2500x200mm

Feed height

200mm

Spindle power

Optional

Spindle speed

0-24000rpm

Tool diameter

Ø3.175,Ø4,Ø6,Ø8,Ø12.7

drive

Step subdivision

Control System

Shenzhen Shanlong S100 Alternative: Zotek, Weihong

Mechanical structure

Industrial steel tube box structure

Transmission system

Z-screw direct connection; X,Y-synchronous belt & helical gear rack

X,Y,Z rail

Domestic linear guide

Repeatability

< 0.03mm/300mm

Maximum speed

20000mm/min

data transmission

USB

Instruction format

HPGL or standard G code

Power Specifications

AC220V or 380V, 50-60Hz

Machine dimensions

2050x3060x1650mm

Package Size

2200x3210x1800mm

Machine gross/net weight

500/700kg

Alternative model

N1-1313, N1-1318, N1-1325, N1-1530
