T2W

TAIMES


Features

1. High Resolution Guide Rail. High standard galvanized steel girder, no creases and painting, which works more stably and quietly, which effectively reduce the noise of printing.
2. japan Imported LED UV Lamp. Better effect for differnt Material.

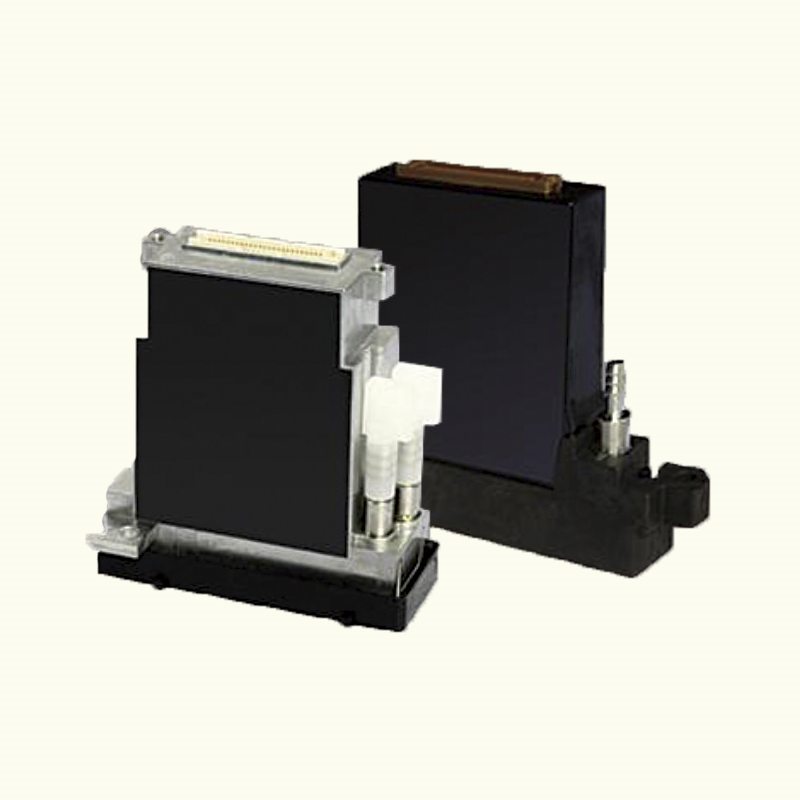

3. Powerful functions Boards System, can support Ricoh Head perfectly.

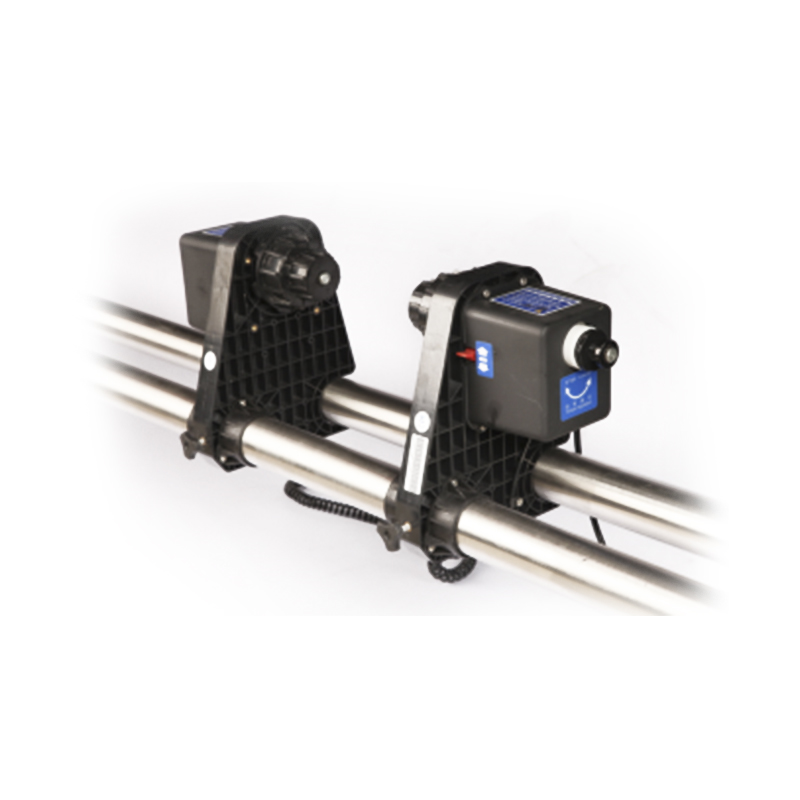

4. Embedded feeding up Sysytem Especially for the Self Adhesive Vinyl, The feeding structure can easily Avoids wrinkling and skid of the Media.

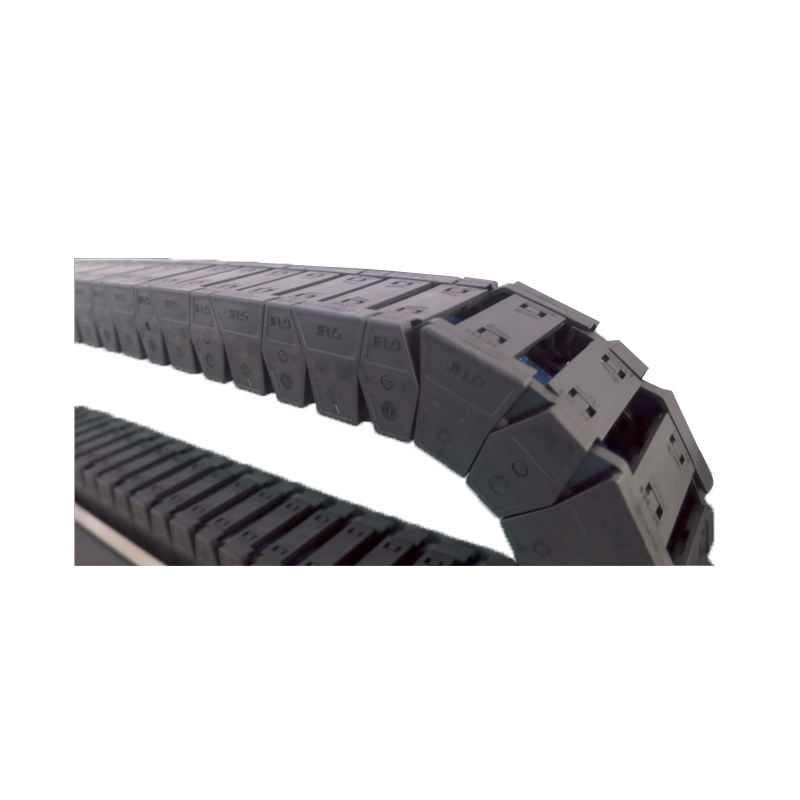

5. Use the Imported Brands THK Linear guide Rail and Lgus Strong Towline, reliable Quality assurance.

TAIMES

T2W

MODEL

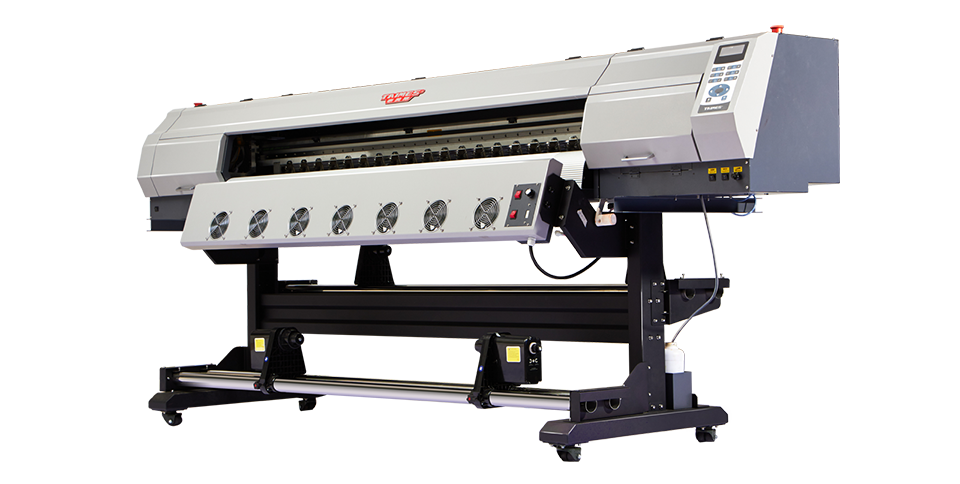

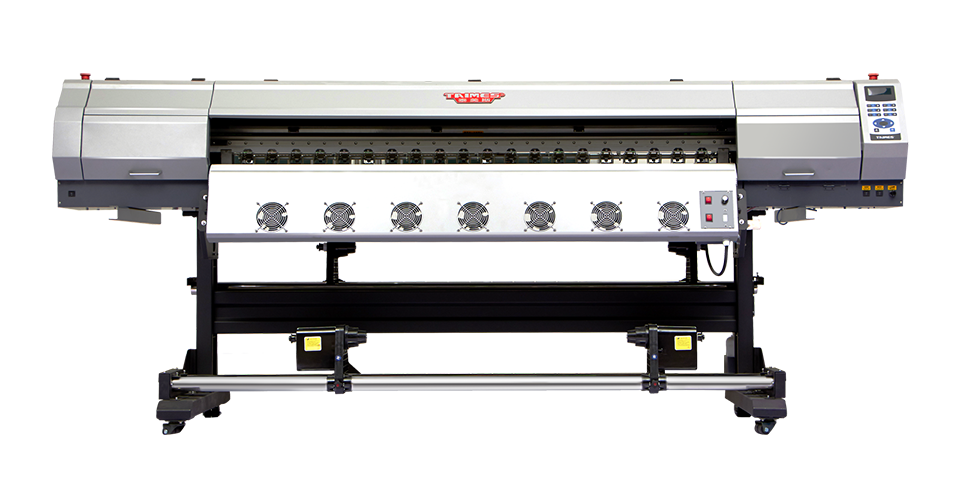

TAIMES T2W EPSON DX5

RIP SOFTWARE

MAINTOP, ULTRA PRINT, PHOTOPRINT, WASATCH, Onyx

PRINT HEAD

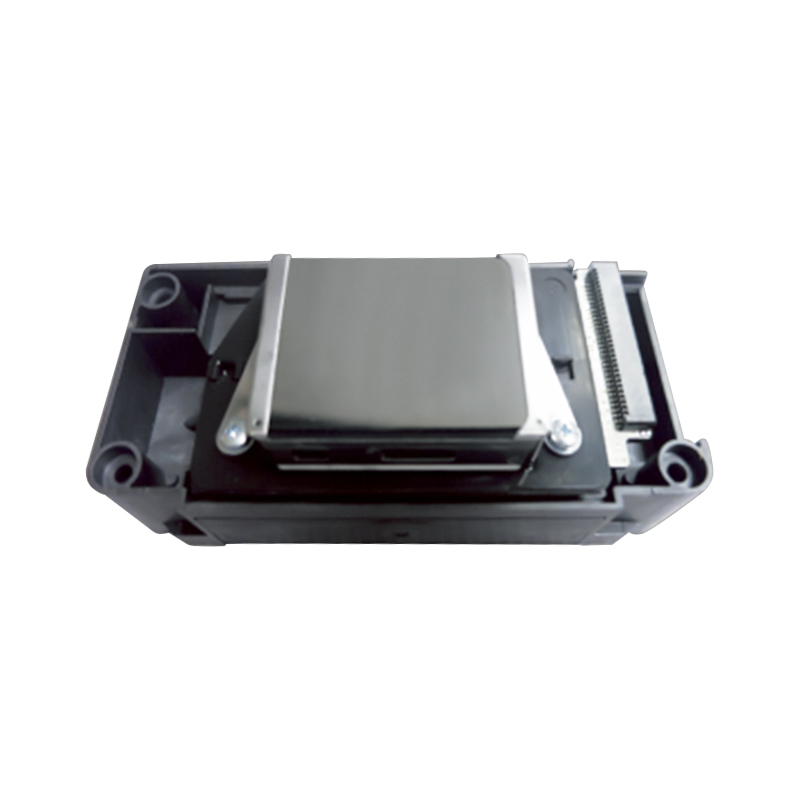

EPSON DX5

Printing Speed

EPSONDX5

1 HEAD

  • 2PASS 14sqm/H
  • 3PASS 10sqm/H
  • 4PASS 7sqm/H
  • 6PASS 4sqm/H
  • 8PASS 3sqm/H
  • 12PASS 2sqm/H

EPSONDX5

2 HEADS

  • 2PASS 29sqm/H
  • 3PASS 20sqm/H
  • 4PASS 14sqm/H
  • 6PASS 8sqm/H
  • 8PASS 6sqm/H
  • 12PASS 4sqm/H

INK TYPE

COLOR

Water Based
ECO Solvent Ink
Sublimation

TYPE

(C,M,Y,K)

CAPACITY

1L per Main Tank of Each Colo

INK SUPPLY

ECO-SOLVENT INK

SPECIFICATION


Machine Dimension

L2,820 x W990 x H1,260mm/220KG

PACKAGE DIMENSION

L2,860 x W1,050 x H685mm/377KG

Auto Media Feeding System

Max.Media weight 25KG

Media Type

Vinyl, polyester, Flex, back-Lit Film, PS Board, KT Board, PVC Board, etc.

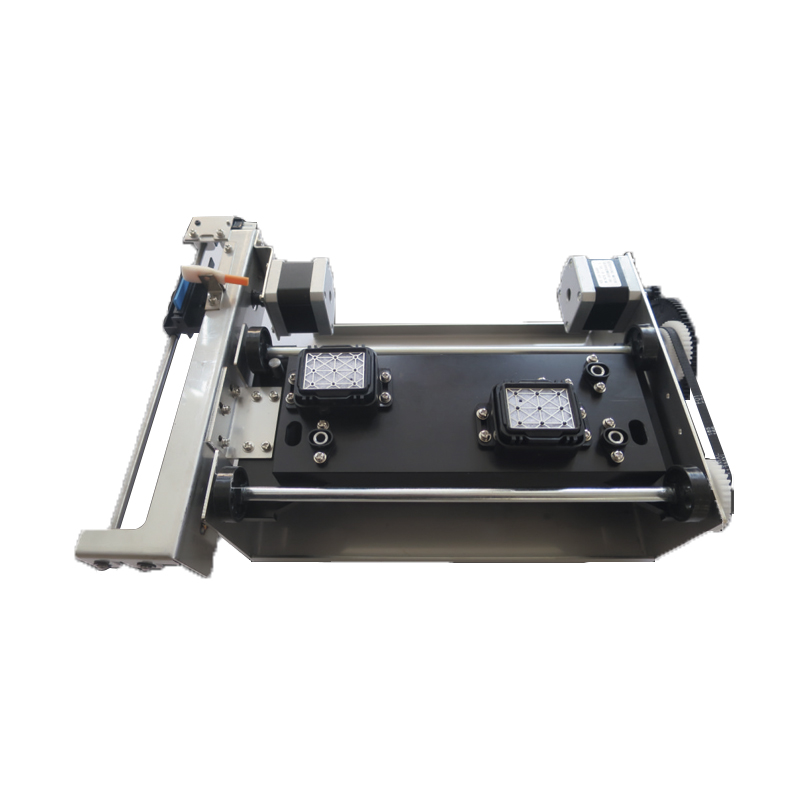

Auto Cleaning System

Anti-clogged Flash Function & Capping System

Pre-heating & Drying System

Equipped

Clamp

Equipped

Print Interface

USB 2.0

Print Head Hight

2 to 10mm from Media

RIP Software

Ultra-print, Maintop, photoprint, Wasatch, Onyx

Input Sodtware

AC 220 V, 5OHz/60Hz

Operating Environment

20-80% 40-60%) Humidity:20-80%(Recommend 40-60%)
15-35C 40-60C) Tempreature 15-35C(Recommend 20-32C)

GALLERY
