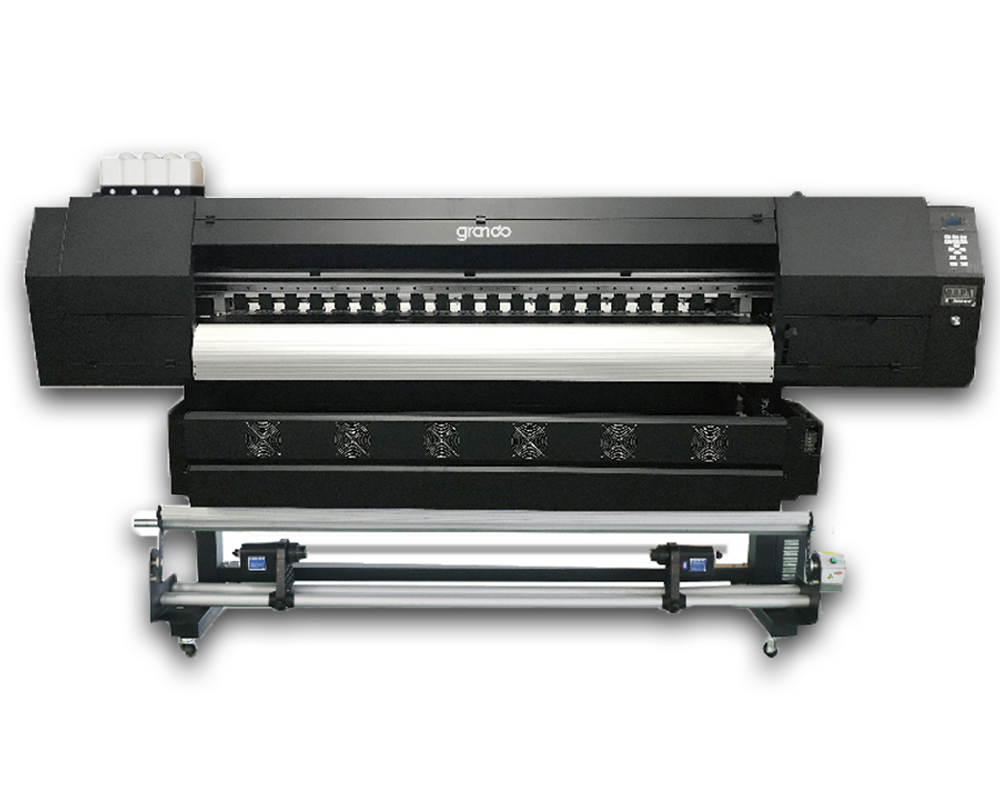

GRANDO

B-SERIES

Features

1. High Resolution Guide Rail. High standard galvanized steel girder, no creases and painting, which works more stably and quietly, which effectively reduce the noise of printing.
2. japan Imported LED UV Lamp. Better effect for differnt Material.
3. Powerful functions Boards System, can support Ricoh Head perfectly.

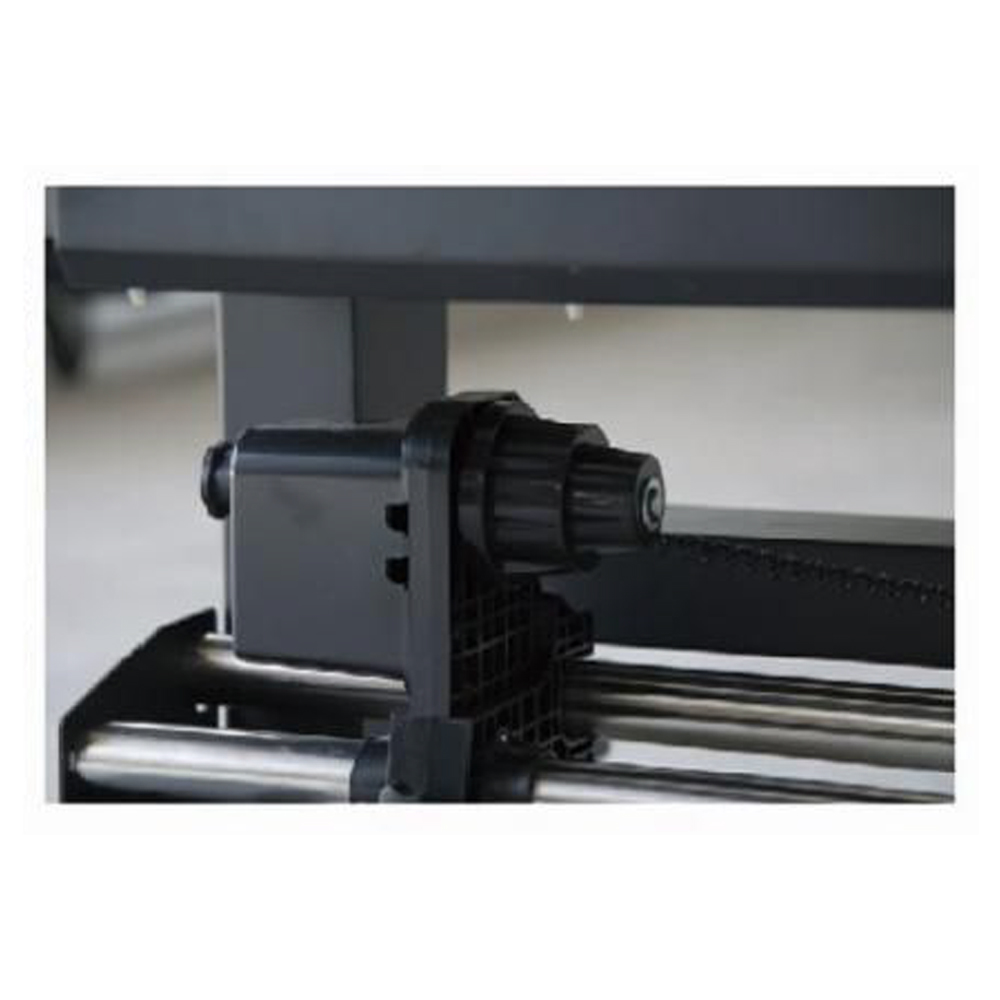

4. Embedded feeding up Sysytem Especially for the Self Adhesive Vinyl, The feeding structure can easily Avoids wrinkling and skid of the Media.
5. Use the Imported Brands THK Linear guide Rail and Lgus Strong Towline, reliable Quality assurance.

GRANDO

B-SERIES

MODEL

BEJ – 1803S - 4720

RIP SOFTWARE

MAINTOP, ULTRA PRINT, PHOTOPRINT, WASATCH, Onyx

PRINT HEAD

Three 3200 Print Heads

Printing Speed

3200

  • 3pass: 969 sqft (90 sqm/h)
  • 4pass: 743 sqft (69 sqm/h)
  • 6pass: 489 sqft (45 sqm/h)

INK TYPE

COLOR

Water Based
ECO Solvent Ink
Sublimation

TYPE

(C,M,Y,K)

CAPACITY

1L per Main Tank of Each Colo

INK SUPPLY

ECO-SOLVENT INK

SPECIFICATION

Machine Dimension

126(W)×26(D)×53(H) in. (3190(W)×650(D)×1360(H) mm)Available

PACKAGE DIMENSION

136(W)×37(D)×61(H) in. (3450(W)×940(D)×1550(H) mm)

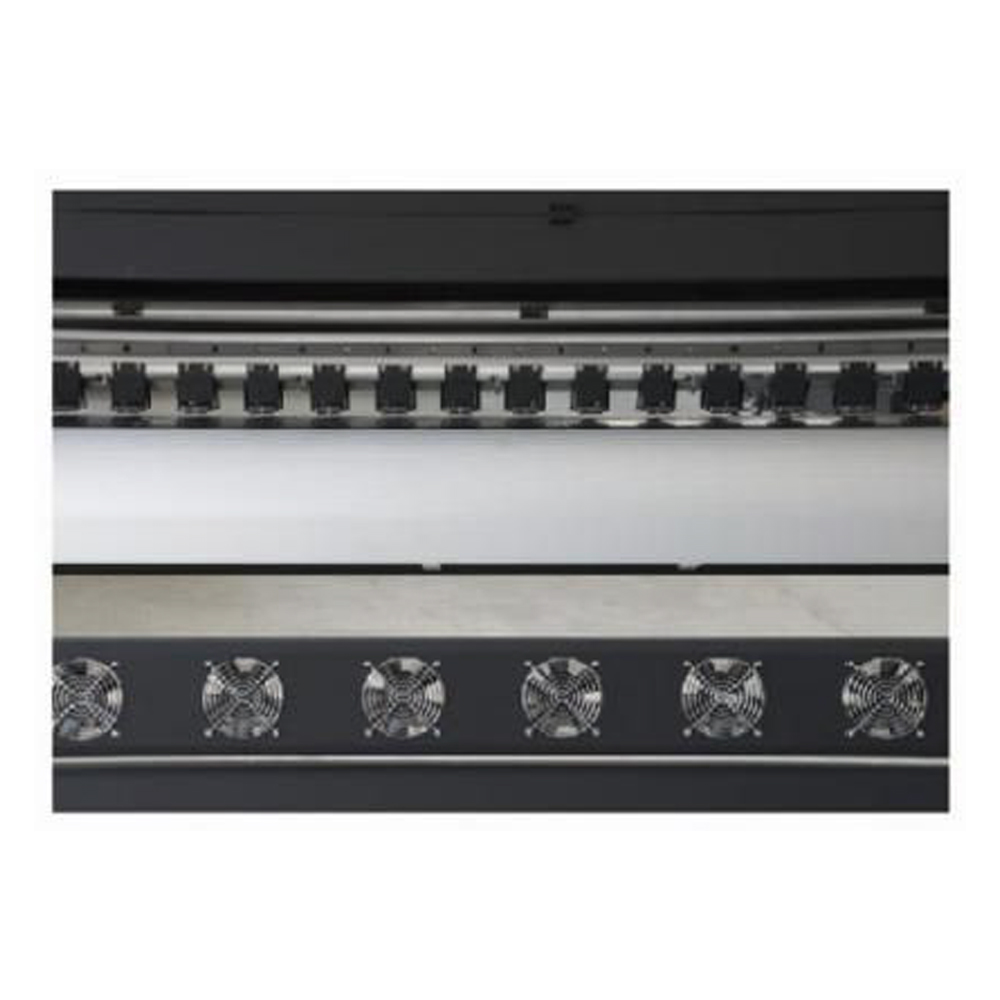

Media Heating System

Intergrated tri-heater system

Media Type

Vinyl, polyester, Flex, back-Lit Film, PS Board, KT Board, PVC Board, etc.

Auto Cleaning System

Anti-clogged Flash Function & Capping System

Pre-heating & Drying System

Equipped

Clamp

Equipped

Print Interface

USB 3.0

Print Head

Three 3200 Print Heads

RIP Software

Ultra-print, Maintop, photoprint, Wasatch, Onyx

Input Sodtware

AC 220 V, 5OHz/60Hz

Operating Environment

20-80% 40-60%) Humidity:20-80%(Recommend 40-60%)
15-35C 40-60C) Tempreature 15-35C(Recommend 20-32C)
