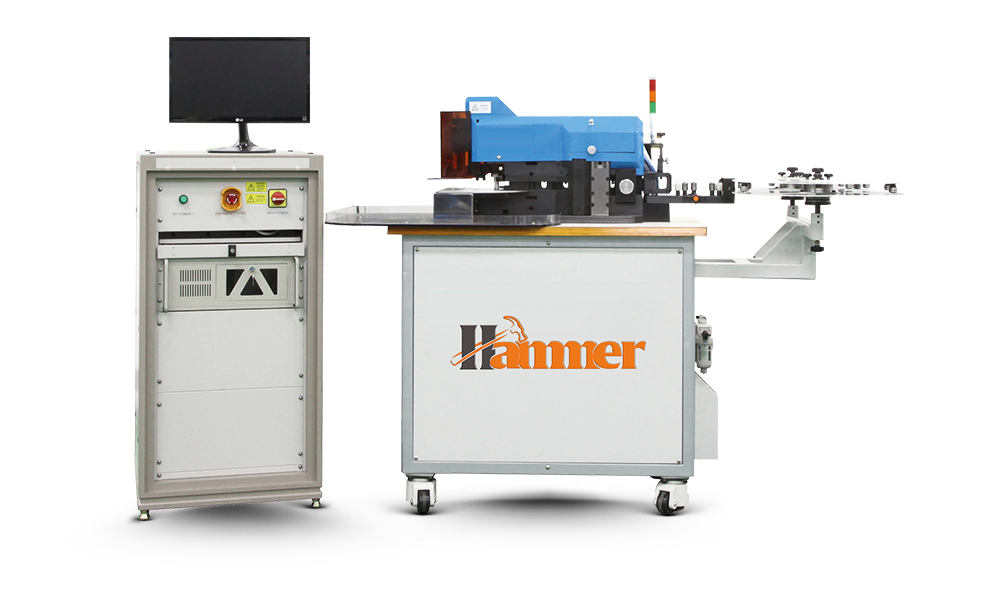

ADP32-GW/RW

HAMMER


Features

1-All in one machine for bending, Cutting, Lipping, Bridging, Perforating, Broaching and nicking
2-Upgraded multi wheel system for broaching, Perforation and nicking
3-8 different kinds of wheels and functions are available by fully automated servo control
4-Broaching depth can be controlled automaticlly by software setting easily (sharp/wide)
5-Stable grabber feeding system
6-Low maitenance cost with long lasting wheels
7-Software imports industry standrad CAD file formats (DWG, DXF, NC, CFF2, DDES2)
8-Multi language operations (Korean, English, Japanese, Chinese, etc)

SPECIFICATION


thickness

1, 1.5, 2, 3 & 4 pt Rule/Crease

height

up to 32mm(1.25")

Min. Bend length

2mm(0.078)

Min. cut length

1mm(0.039)

computer

Window based PC/with color LED monitor

dinmesions

2,800mm W x 1,200mm D x 1,700mm H/110"X 47"X 66"

power requirements

3Phase 220V / 380V, 15A, 5KVA, 50-60Hz

Air

1CFM at 6 parts

Weight

750KG
