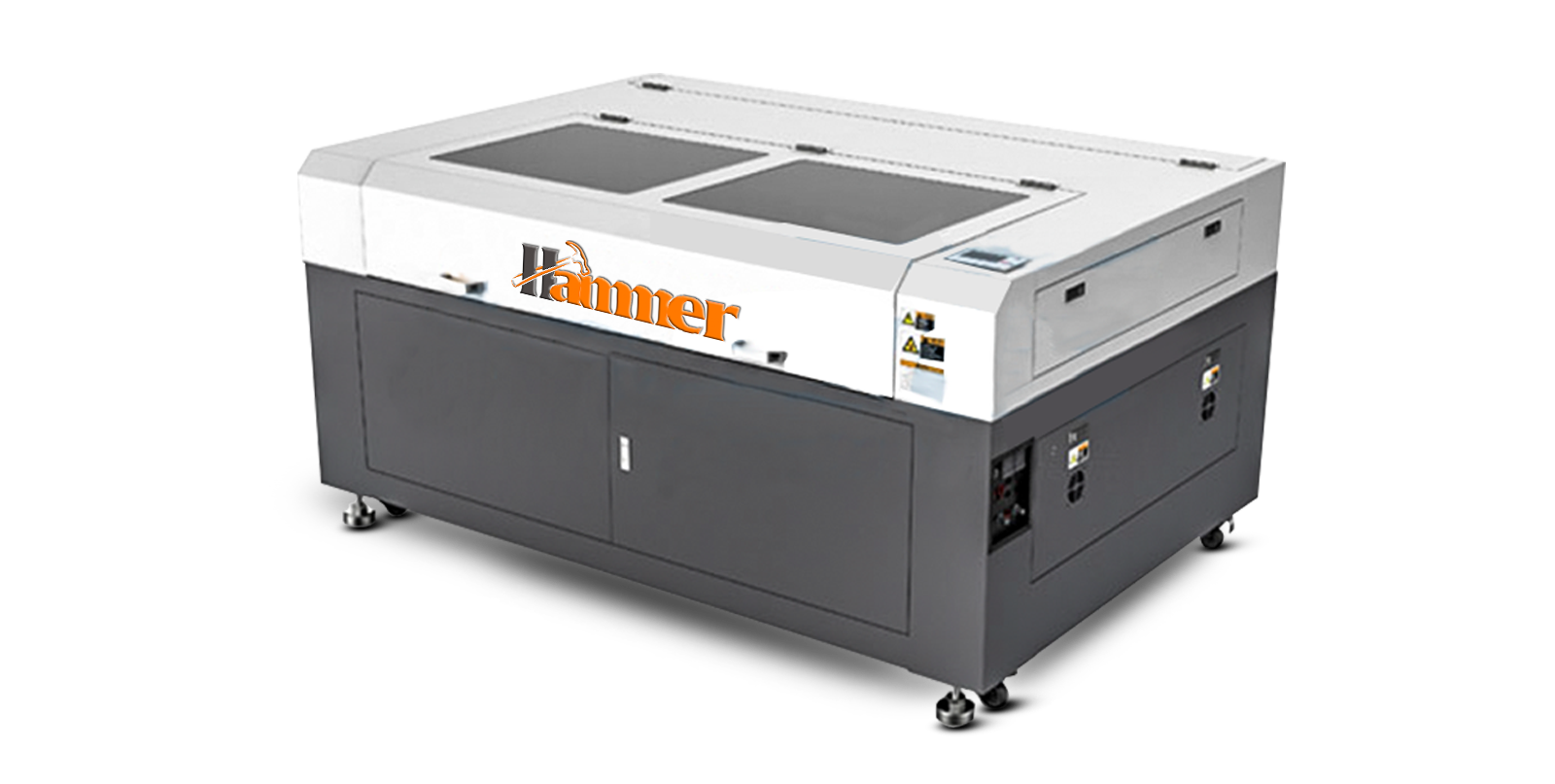

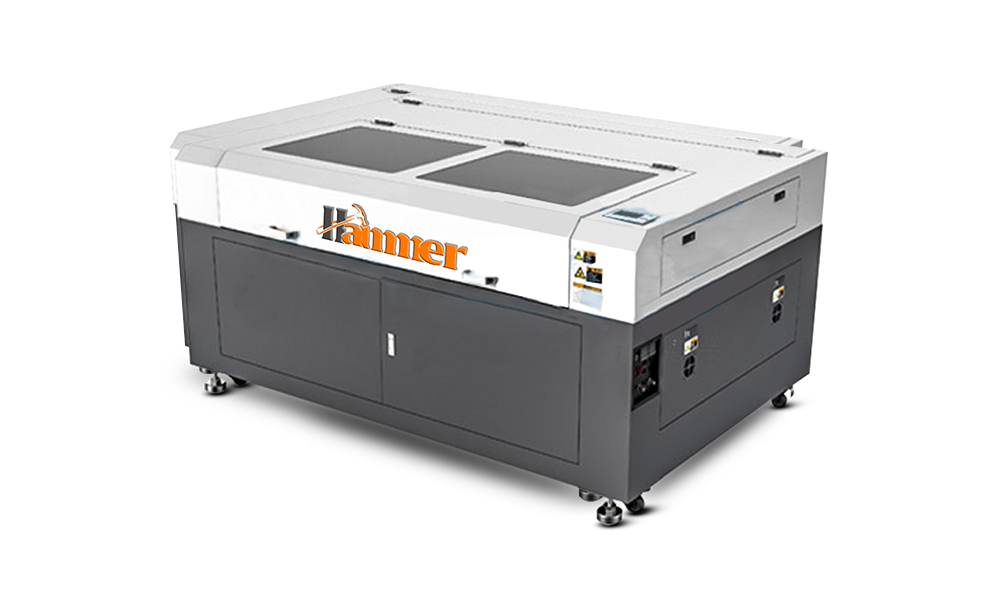

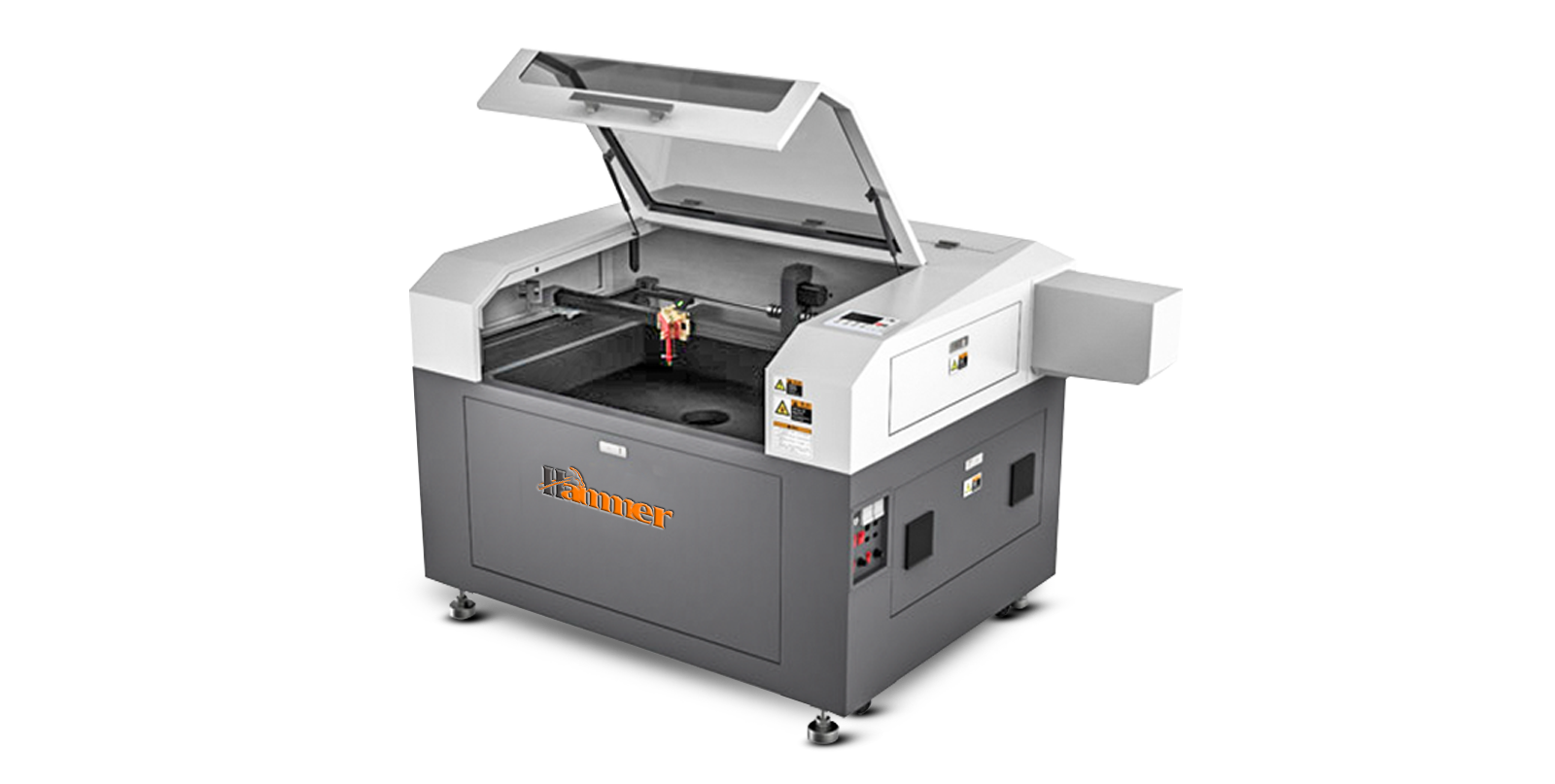

FBW

HAMMER


Features

1. 600℃ heat treatment, 24 hours cooling in the oven, 8 meters gantry milling, accurate CO2 protection welding, to make sure 20 years usage without deformation.
2. Adopts precision collimator for guide installation and debugging test, the accuracy of 0.01 mm, synchronous wheel pumping test, in order to prevent the cutting is choppy, precision up to 0.02 mm.
3. Patent laser cutting bed convulsions system and convulsions system, which can effectively eliminate 80% waste flue gas. Equipped with convulsions system. Under the convenient receiving device.
4. Unique upper blowing design, to avoid catching fire.
5. Adopt high precision laser head, X axis transmission adopts aluminum structure, the weight reaches to 1.2 tons. Effective guarantee the stability of the machine tool.
6. The only one small power laser machine manufacturer to use 5 steps of laser tube testing technology: A. laser spot testing; B. power testing; C. lifespan testing. D. air pressure testing; E. current pounding testing

SPECIFICATION


Working Table

1.3*2.5, 1.5*2.5,1.5*3 & 1.60*3M

Laser power

150(W)

Max.running speed

25m/min

Transmitting structure

Fixed by steel strips, gear transmittion

Max running speed

25/min

X/Y location precision

0.1mm/m

Power Supply

AC220V±10% 50HZ

X/Y repeated location precision

±0.1mm

Machine gross power

≤1800W

Running Temperature

0°C-40°C

Running humidity

5%-95%

Formats

CDR、BMP、PLT、GPEG、DXF、DST

Applied Materials

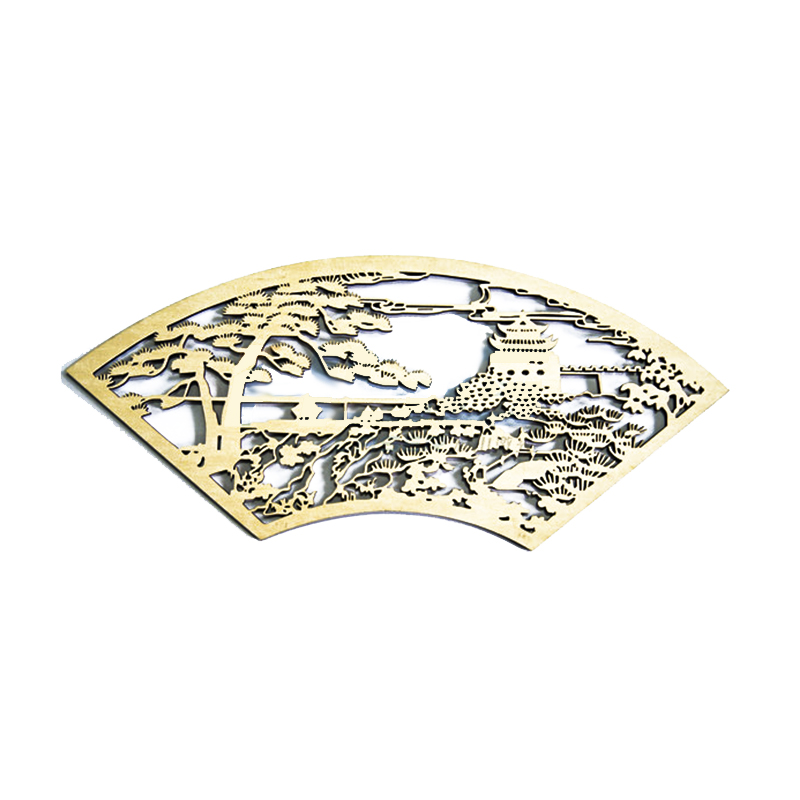

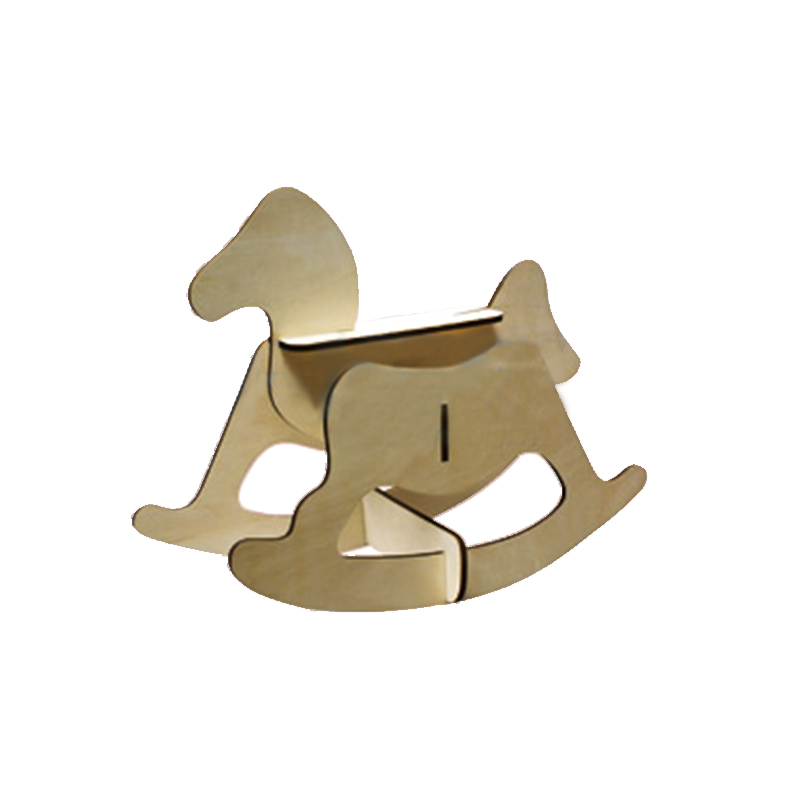

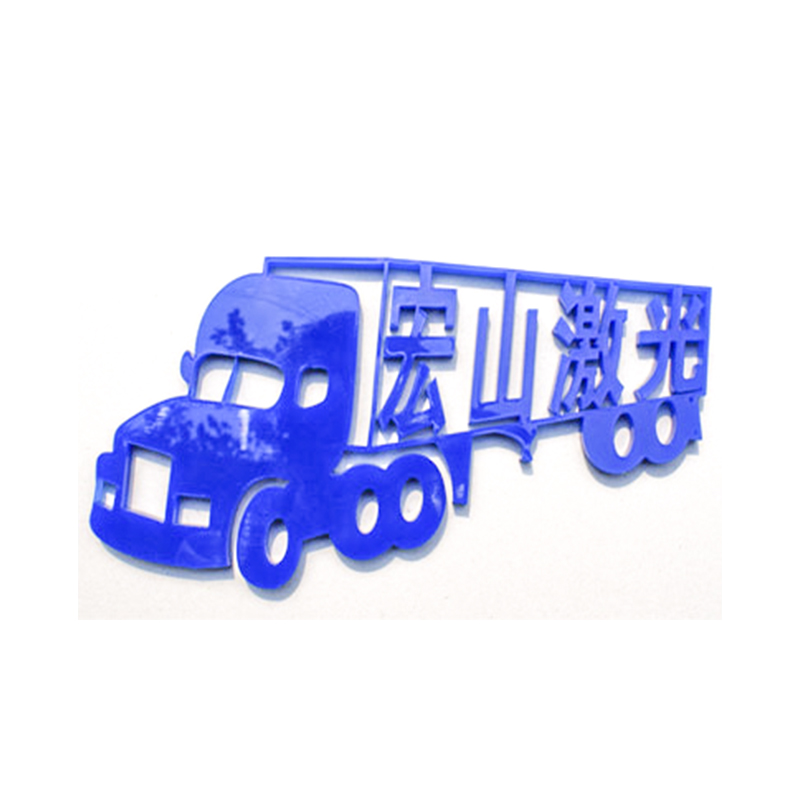

Cutting acrylic, LED and LGP, MDF, Plywood, advertising decorative material, electrical panel, etc. Especially design for high precision cutting demand users.

GALLERY
